Each Tractor Engine Oil Change - Check Mounting Frame Hardware (5020 Series Tractors)

CC277470-UN-13APR16

CC202376-UN-10JUL13

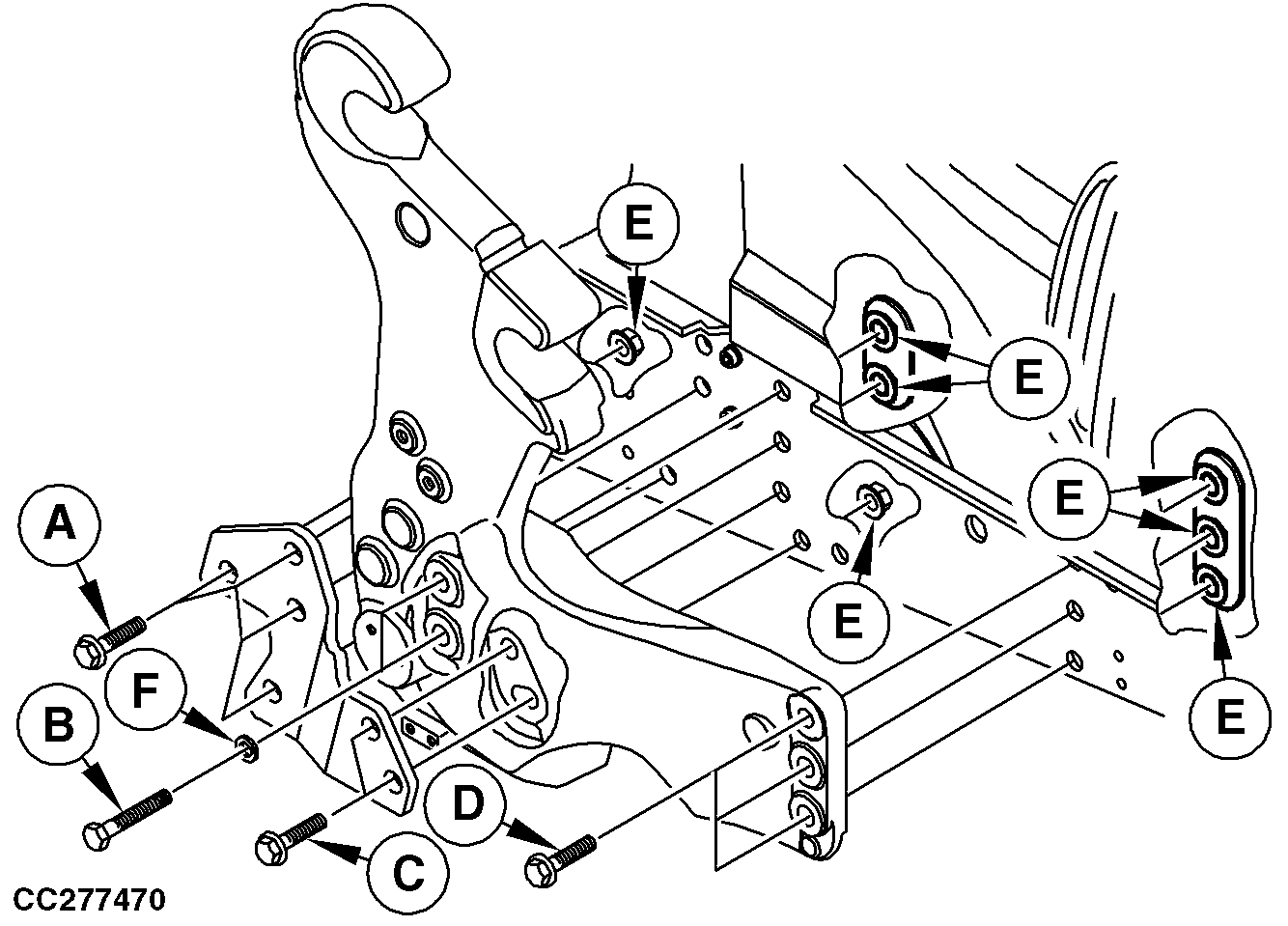

A - Cap Screw with Flange

B - Cap Screw

C - Cap Screw with Flange

D - Cap Screw with Flange

E - Hex. Nut with Flange

F - Washer

Help prevent damage to the tractor or loader caused by operating with loose mounting hardware. Retightening hardware after each engine drain.

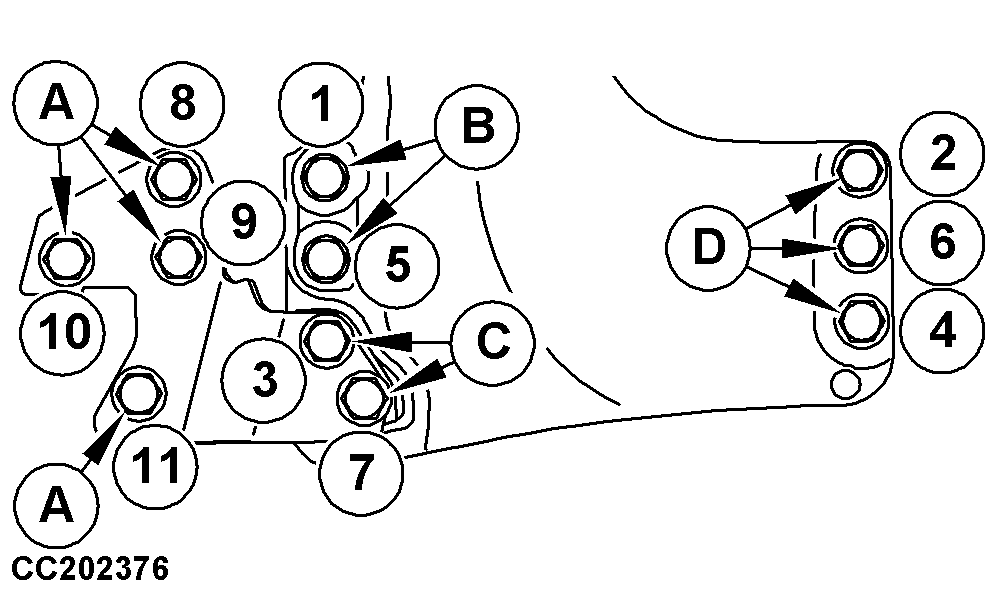

Tighten eleven cap screws (A), (B), (C) and (D) on both sides to specification using tightening sequence shown.

Cap Screw with Flange (A), (C) and (D)	Torque	620 N·m (460 lb.-ft.)
Cap Screw (B)	Torque	620 N·m (460 lb.-ft.)

Hardware used on loader mounting frame
Item	Designation	Standard	Dimension	Identification / Grade	Coating
(A)	Cap screw with flange	JDS123	M20 x 2.5 x 45	10.9	Zinc
(B)	Cap screw	ISO4014	M20 x 2.5 x 170	10.9	Zinc
(C)	Cap screw with flange	JDS121	M20 x 2.5 x 80	10.9	Zinc
(D)	Cap screw with flange	JDS121	M20 x 2.5 x 70	10.9	Zinc
(E)	Nut with flange	ISO4161	M20 x 2.5	10	-

Hardware used on loader mounting frame
Item	Designation	Standard	Dimension - Inside	Dimension - Outside	Thickness	Material	Coating
(F)	Washer	ISO7091	22 mm (0.9 in.)	37 mm (1.5 in.)	3 mm (0.1 in.)	100HV	Zinc
