As Required - Automatic Implement Latch

CC248271-UN-03JUL15

CC230296-UN-03JUL15

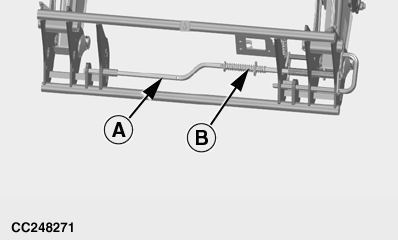

A - Rod

B - Spring

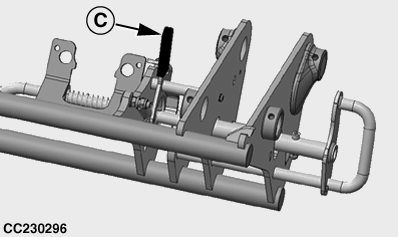

C - Lever

1. Avoid personal injury. DO NOT stand in the path of the lock bar, when the spring is compressed. DO NOT latch without using the lever (C). Never put your hands through the carrier to pull lever (C).

   Clean and apply grease, oil or lubricant spray to rod (A) and spring (B).

2. • Loader equipped with Euro carrier: Pull lever (C) from the top of carrier to engage implement latch pins.

   • Loader equipped with Euro/MX carrier or Euro/SMS carrier: Slowly roll back carrier to engage implement latch pins.
