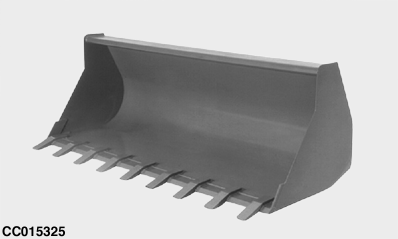

Earth Bucket

CC015325-UN-16APR99

The chart below gives the compatibility between buckets and loaders.

Only the combinations marked OK are allowed.

Bucket Width		1600 mm (5 ft. 3 in.)	2000 mm (6 ft. 7 in.)
Struck Capacity		0.58 m3 (20 cu. ft.)	0.72 m3 (25 cu. ft.)
Loader Model		Compatibility
543R	MSL	OK	OK
543R	NSL	OK
603R	HSL	OK	OK
603R	MSL	OK	OK
603R	NSL	OK	OK
623R	HSL	OK	OK
623R	MSL	OK	OK
623R	NSL	OK	OK
643R	HSL	OK	OK
643R	MSL	OK	OK
643R	NSL	OK	OK
663R	MSL	OK	OK
663R	NSL	OK	OK
683R	MSL	OK	OK

OK: Bucket allowed on this loader
