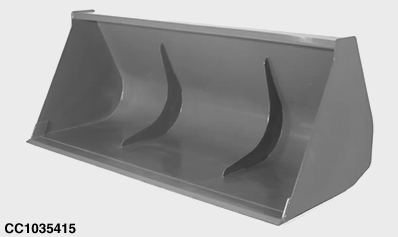

Grain Bucket

CC1035415-UN-11JAN12

The chart below gives the compatibility between buckets and loaders.

Only the combinations marked OK are allowed.

Bucket Width		2200 mm (7 ft. 3 in.)
Struck Capacity		1.7 m3 (60 cu. ft.)
Loader Model		Compatibility
543R	NSL
543R	MSL
603R	HSL	OK
603R	MSL	OK
603R	NSL
623R	HSL	OK
623R	MSL	OK
623R	NSL
643R	HSL	OK
643R	MSL	OK
643R	NSL	OK
663R	MSL	OK
663R	NSL	OK
683R	MSL	OK

OK: Bucket allowed on this loader
