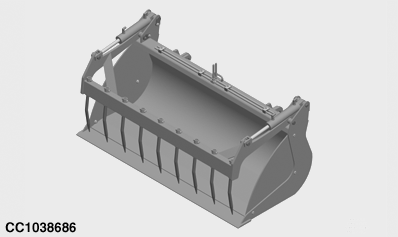

Standard Multi-Purpose Bucket
CC1038686-UN-07DEC12
The following standard multi-purpose buckets with grapple are available:
The chart below gives the compatibility between buckets and loaders.
Only the combinations marked OK are allowed.
|
Bucket Width |
1600 mm (5 ft. 3 in.) |
1800 mm (5 ft. 11 in.) |
2000 mm (6 ft. 7 in.) |
2200 mm (7 ft. 3 in.) |
|
|---|---|---|---|---|---|
|
Struck Capacity |
0.48 m3 (17 cu. ft.) |
0.54 m3 (19 cu. ft.) |
0.6 m3 (21 cu. ft.) |
0.66 m3 (23 cu. ft.) |
|
|
Loader Model |
Compatibility |
||||
|
543R |
MSL |
OK |
OK |
OK |
|
|
543R |
NSL |
OK |
OK |
||
|
603R |
HSL |
OK |
OK |
OK |
|
|
603R |
MSL |
OK |
OK |
OK |
|
|
603R |
NSL |
OK |
OK |
||
|
623R |
HSL |
OK |
OK |
OK |
OK |
|
623R |
MSL |
OK |
OK |
OK |
OK |
|
623R |
NSL |
OK |
OK |
||
|
643R |
HSL |
OK |
OK |
OK |
OK |
|
643R |
MSL |
OK |
OK |
OK |
OK |
|
643R |
NSL |
OK |
OK |
OK |
OK |
|
663R |
MSL |
OK |
OK |
OK |
OK |
|
663R |
NSL |
OK |
OK |
OK |
OK |
|
683R |
MSL |
OK |
OK |
OK |
OK |
OK: Bucket allowed on this loader
This implement requires the loader to be equipped with a third hydraulic function.
|
NB02380,0000199-19-20160919 |
