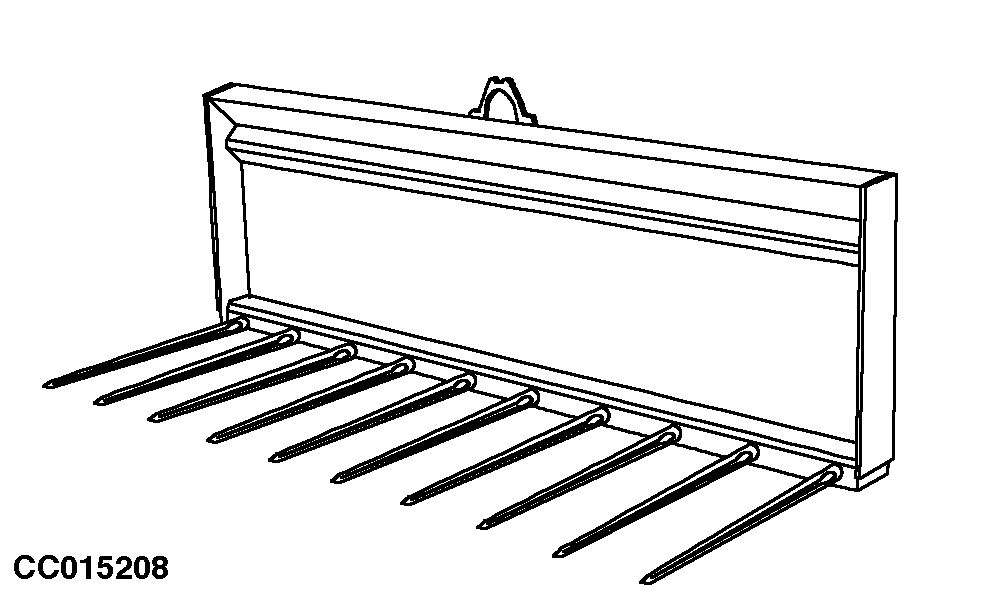

Standard Manure Fork
CC015208-UN-16APR99
These forks are equipped with 810 mm (2 ft. 8 in.) tines.
The chart below gives the compatibility between forks and loaders.
Only the combinations marked OK are allowed.
|
Fork Width |
1400 mm (4 ft. 7 in.) |
1600 mm (5 ft. 3 in.) |
2000 mm (6 ft. 7 in.) |
2200 mm (7 ft. 3 in.) |
|
|---|---|---|---|---|---|
|
Loader Model |
Compatibility |
||||
|
543R |
MSL |
OK |
OK |
OK |
OK |
|
543R |
NSL |
OK |
OK |
OK |
|
|
603R |
HSL |
OK |
OK |
OK |
OK |
|
603R |
MSL |
OK |
OK |
OK |
OK |
|
603R |
NSL |
OK |
OK |
OK |
|
|
623R |
HSL |
OK |
OK |
OK |
OK |
|
623R |
MSL |
OK |
OK |
OK |
OK |
|
623R |
NSL |
OK |
OK |
OK |
OK |
|
643R |
HSL |
OK |
OK |
OK |
OK |
|
643R |
MSL |
OK |
OK |
OK |
OK |
|
643R |
NSL |
OK |
OK |
OK |
OK |
|
663R |
MSL |
OK |
OK |
OK |
OK |
|
663R |
NSL |
OK |
OK |
OK |
OK |
|
683R |
MSL |
OK |
OK |
OK |
|
OK: Fork allowed on this loader
|
