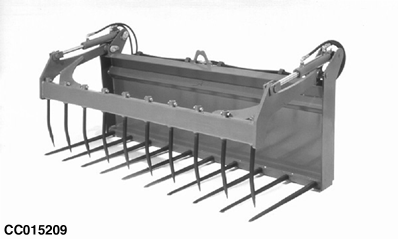

Standard Manure Fork with Grapple

CC015209-UN-16APR99

Standard manure forks with grapples are available in the following widths:

The chart below gives the compatibility between forks and loaders.

Only the combinations marked OK are allowed.

Fork Width		1600 mm (5 ft. 3 in.)	2000 mm (6 ft. 7 in.)
Loader Model		Compatibility
543R	MSL	OK	OK
543R	NSL	OK
603R	HSL	OK	OK
603R	MSL	OK	OK
603R	NSL	OK	OK
623R	HSL	OK	OK
623R	MSL	OK	OK
623R	NSL	OK	OK
643R	HSL	OK	OK
643R	MSL	OK	OK
643R	NSL	OK	OK
663R	MSL	OK	OK
663R	NSL	OK	OK
683R	MSL	OK	OK

OK: Fork allowed on this loader

This implement requires the loader to be equipped with a third hydraulic function.
