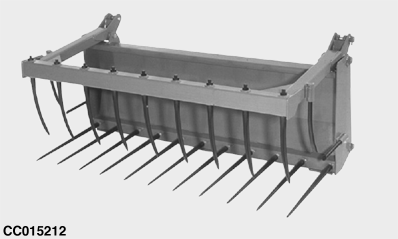

Heavy-Duty Manure Fork with Grapple

CC015212-UN-16APR99

Grapples are available to fit heavy-duty manure forks.

The chart below gives the compatibility between heavy-duty manure fork with grapple and loaders.

Only the combinations marked OK are allowed.

Fork Width		1550 mm (5 ft. 1 in.)	1900 mm (6 ft. 3 in.)
Loader Model		Compatibility
543R	MSL	OK
543R	NSL
603R	HSL	OK	OK
603R	MSL	OK	OK
603R	NSL	OK	OK
623R	HSL	OK	OK
623R	MSL	OK	OK
623R	NSL	OK	OK
643R	HSL	OK	OK
643R	MSL	OK	OK
643R	NSL	OK	OK
663R	MSL	OK	OK
663R	NSL	OK	OK
683R	MSL		OK

OK: Fork allowed on this loader

Grapples require the loader to be equipped with a third hydraulic function.
