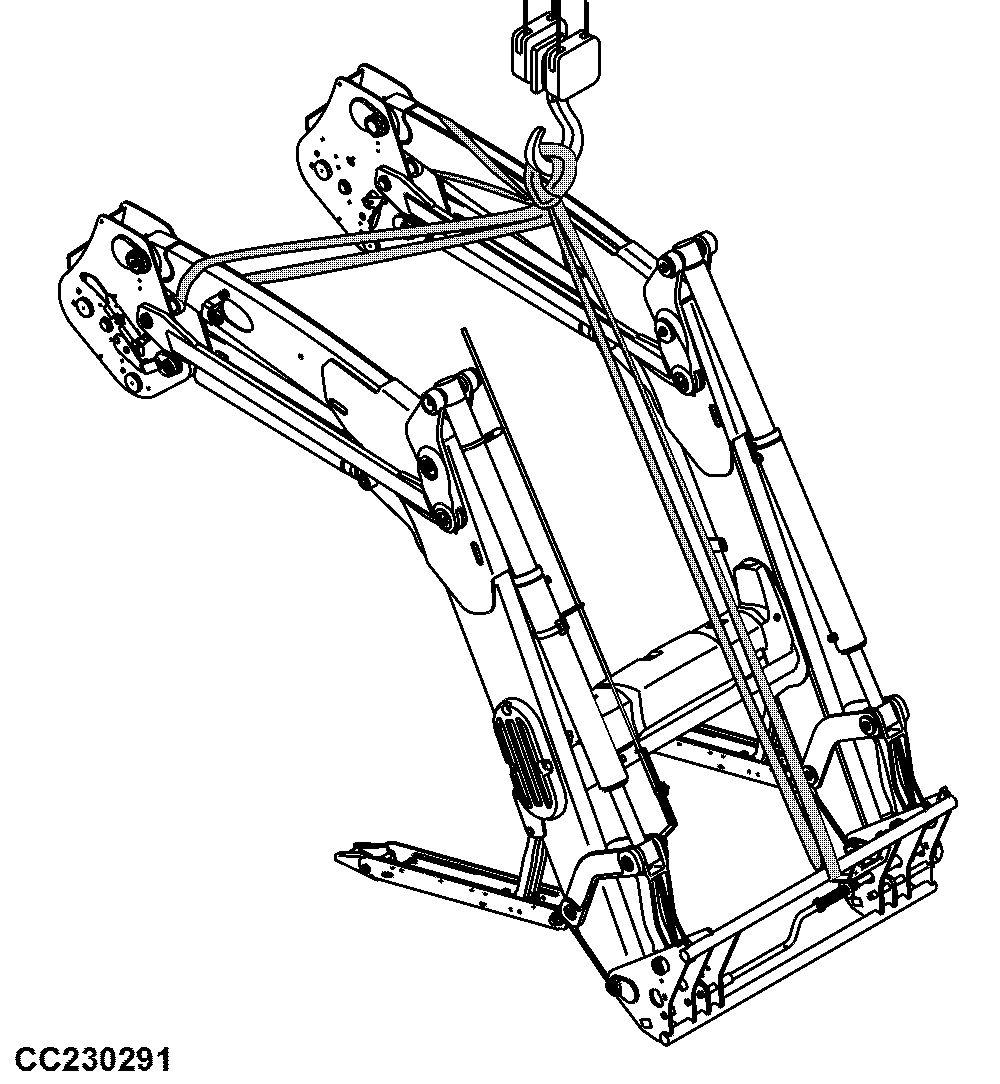

Loader Hanging Points

W21816-UN-12SEP11

Hanging Point Sign

CC230291-UN-29JUN15

Avoid injury or death. Use lifting equipment with proper capacity. Refer to the following table to obtain maximum weight for each loader model.

If loader must be moved when not attached to tractor, use hanging points shown. Signs indicate the hanging points. hanging points are given for loader without bucket or implement.

The sign is not a point of attachment of a load.

Loader Model		Maximum Weight
543R	MSL	695 kg (1530 lb)
	NSL	615 kg (1360 lb)
603R	HSL	780 kg (1720 lb)
	MSL	810 kg (1785 lb)
	NSL	730 kg (1610 lb)
623R	HSL	795 kg (1755 lb)
	MSL	820 kg (1810 lb)
	NSL	735 kg (1620 lb)
643R	HSL	860 kg (1900 lb)
	MSL	875 kg (1930 lb)
	NSL	785 kg (1735 lb)
663R	MSL	945 kg (2085 lb)
	NSL	880 kg (1940 lb)
683R	MSL	1030 kg (2275 lb)
