Each Tractor Engine Oil Change: Check Mounting Frame Hardware (5M and 5R Series PIN Prefix 1LV Tractors)

CC277469-UN-08APR16

CC202372-UN-09JUL13

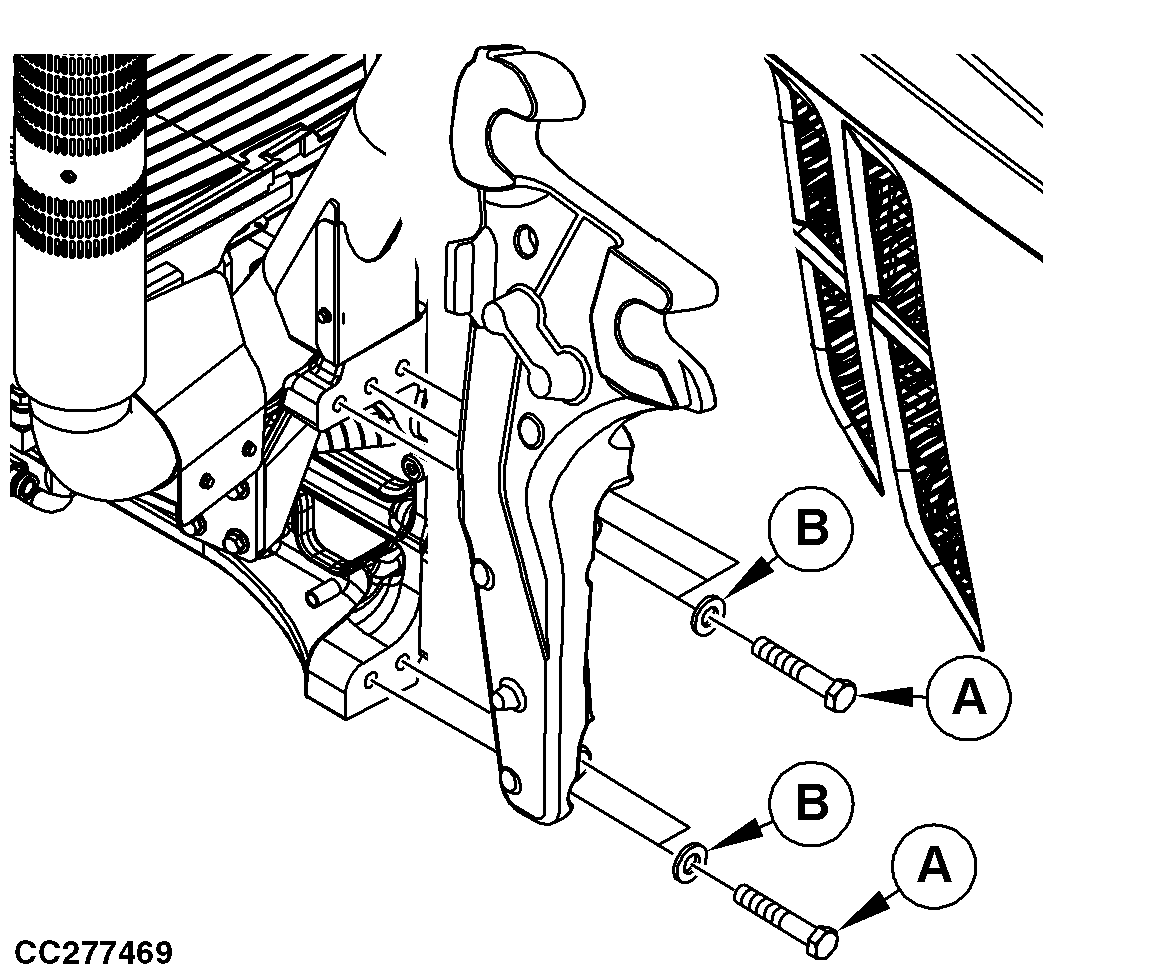

A - Cap Screw

B - Washer

Help prevent damage to the tractor or loader caused by operating with loose mounting hardware. Retighten hardware after each engine drain.

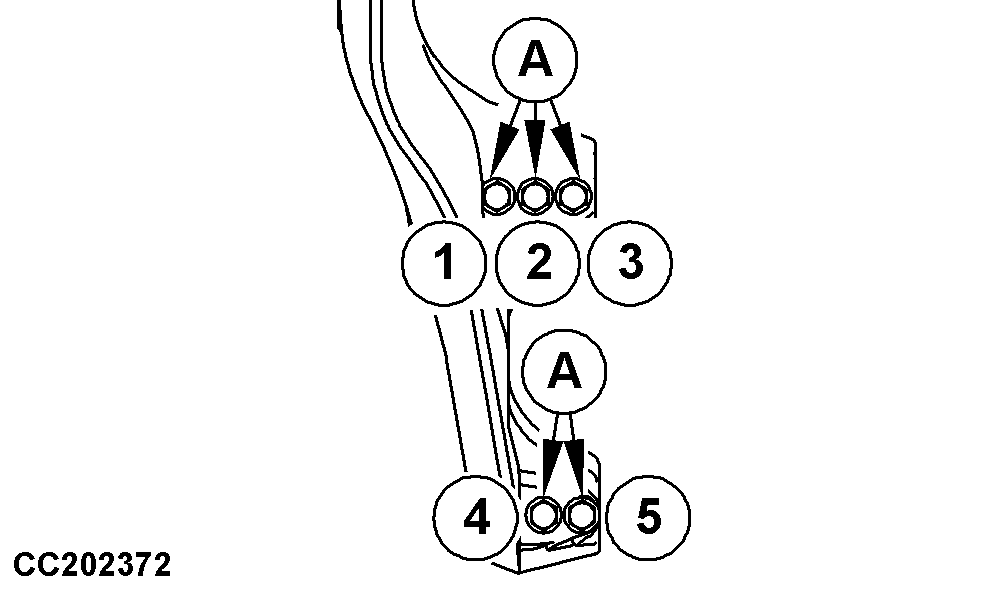

Tighten seven cap screws (A) on both sides to specification using tightening sequence shown.

Cap Screws with Flange (A)	Torque	625 N.m. (460 lb.-ft.)

Hardware used on loader mounting frame
Item	Designation	Standard	Dimension	Identification / Grade	Coating
(A)	Cap screw	ISO4014	M20 x 2.5 x 110	10.9	Zinc

Hardware used on loader mounting frame
Item	Designation	Standard	Dimension - Inside	Dimension - Outside	Thickness	Material	Coating
(B)	Washer	JDS130	21.4 mm (0.8 in.)	42 mm (1.6 in.)	5 mm (0.2 in.)	300HV	Zinc
