Install Battery Harness (If Equipped)

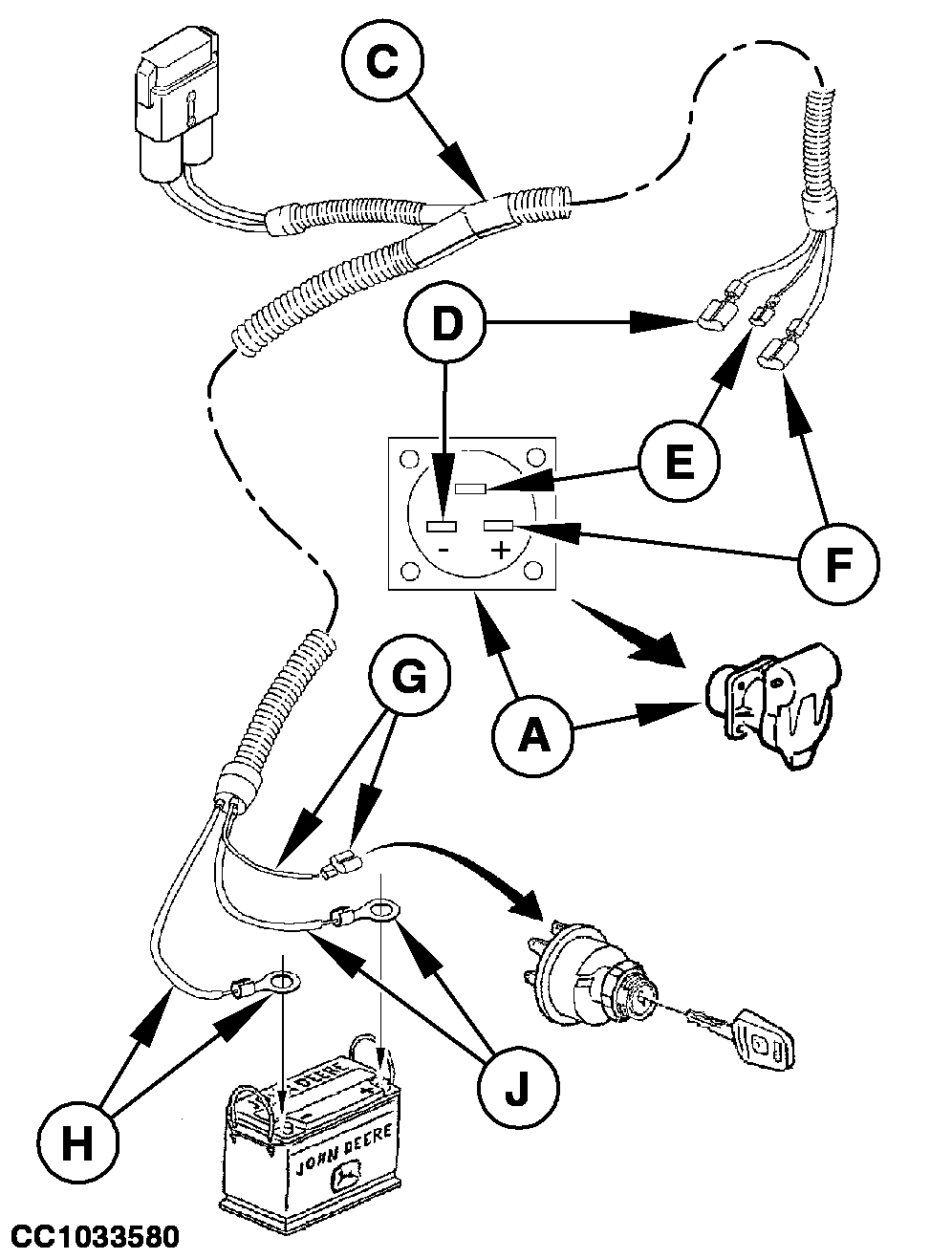

CC1033580-UN-05NOV10

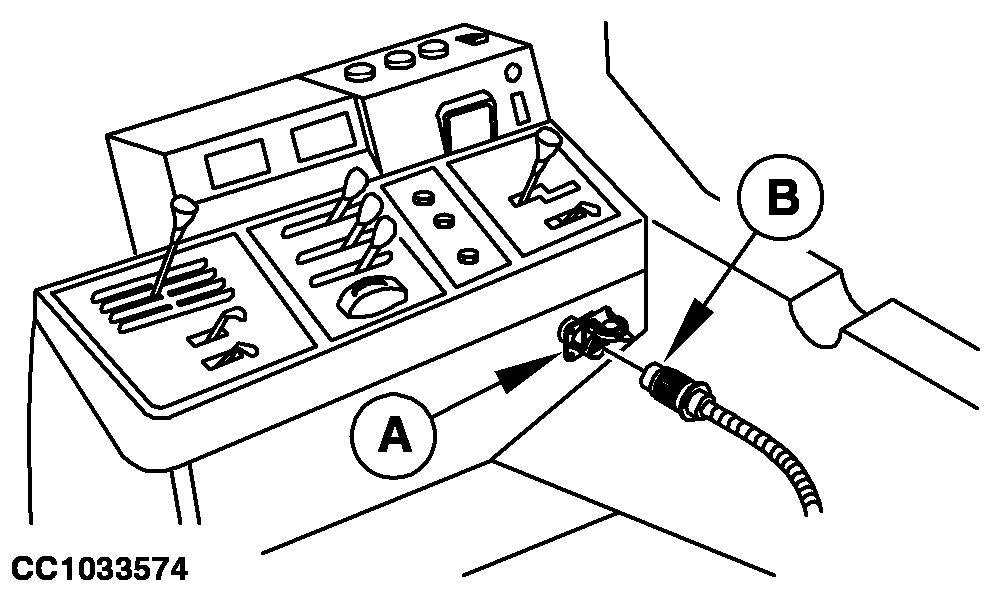

CC1033574-UN-05NOV10

A - Convenience Power Outlet

B - Portable Harness Plug

C - Battery Harness

D - Black (6.0 mm²)

E - Red (1.5 mm²)

F - Red (6.0 mm²)

G - Red (Positive) Wire (1.5 mm²)

H - Black (Negative) Wire (6.0 mm²)

J - Red (Positive) Wire (6.0 mm²)

The battery harness (C) must be connected to the tractor as shown.

If the tractor is not equipped with the convenient power outlet (A), see your John Deere dealer.

Connect the virtual terminal (display) to the portable harness.

Connect portable harness plug (B) to the convenient power outlet (A).

Place the connector for the machine harness out of the cab.
