Identify Hose Connections: Individual Couplers

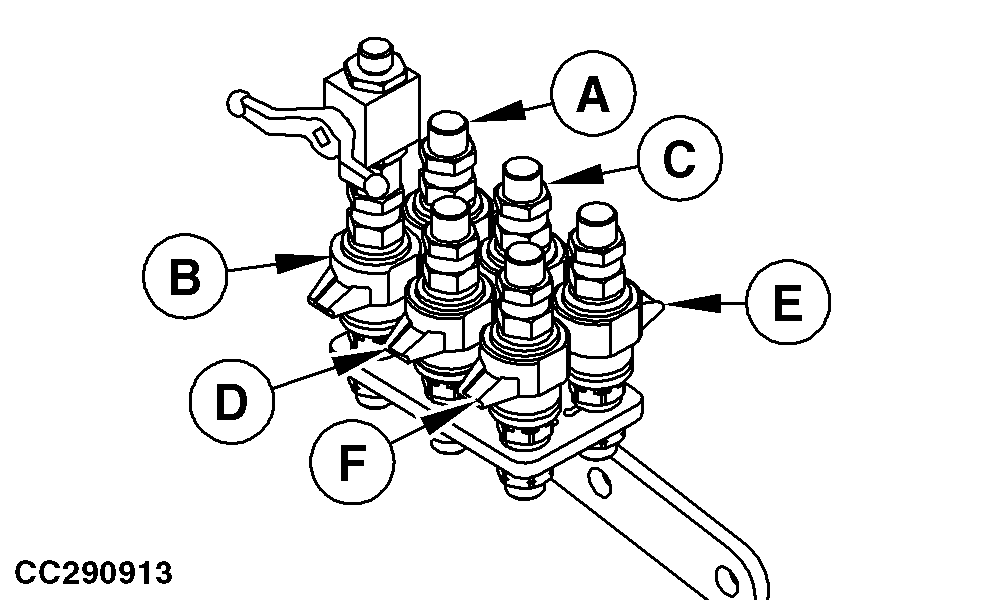

CC290913-UN-26SEP16

Individual Coupler

Key	Color	Hydraulic Function
A	Red	Lower Loader
B	Blue	Raise Loader
C	Orange	Close Grapple (if equipped)
D	Green	Open Grapple (if equipped)
E	Black	Roll Back Bucket
F	Yellow	Dump Bucket
