543R Loader: Approved MFWD Tractors, Rear Ballast and Approved Front Tires

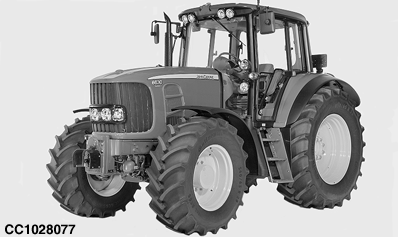

CC1028077-UN-11MAY06
To help prevent personal injury or death caused by
tractor rollover, be sure tractor is equipped with rollover protective
structure (ROPS) and approved seat belt. Ensure stability of tractor
and loader by adding the recommended amount of ballast to the rear
hitch of tractor.
To prevent tire failure, use only tires with load index equal or greater than those shown in following tables.
Compatibility shown in following tables is given for Premium, non-Premium, SE and non-SE tractors.
See your tractor Operator's Manual to find allowed tire sizes.
Set tire pressure to the maximum work pressure for a maximum speed of 10 km/h (6.2 mph).
See your tractor Operator's Manual, tire manufacturer's documentation or your John Deere dealer to know tire specifications.
|
Tractor |
543R Loader NSL |
543R Loader MSL |
|||||
|---|---|---|---|---|---|---|---|
|
Series |
Models |
Hitch Ballast1 |
Tire Load Index |
Hitch Ballast1 |
Tire Load Index |
||
|
A8 or A8/B tire speed rating |
D tire speed rating |
A8 or A8/B tire speed rating |
D tire speed rating |
||||
|
5M Tier 3 PIN Prefix 1L0 |
5070M |
900 kg (2000 lb.) |
125 |
122 |
900 kg (2000 lb.) |
131 |
127 |
|
5080M |
900 kg (2000 lb.) |
125 |
122 |
900 kg (2000 lb.) |
131 |
127 |
|
|
5090M |
900 kg (2000 lb.) |
125 |
122 |
900 kg (2000 lb.) |
131 |
127 |
|
|
5100M |
900 kg (2000 lb.) |
125 |
122 |
900 kg (2000 lb.) |
131 |
127 |
|
|
5R Tier 3 PIN Prefix 1L0 |
5080R |
900 kg (2000 lb.) |
125 |
122 |
900 kg (2000 lb.) |
131 |
127 |
|
5090R |
900 kg (2000 lb.) |
125 |
122 |
900 kg (2000 lb.) |
131 |
127 |
|
|
5100R |
900 kg (2000 lb.) |
125 |
122 |
900 kg (2000 lb.) |
131 |
127 |
|
|
5M Tier 3 PIN Prefix 1LV |
5085M |
900 kg (2000 lb.) |
126 |
123 |
1150 kg (2550 lb.) |
131 |
127 |
|
5095M |
900 kg (2000 lb.) |
126 |
123 |
1150 kg (2550 lb.) |
131 |
127 |
|
|
5105M |
900 kg (2000 lb.) |
126 |
123 |
1150 kg (2550 lb.) |
131 |
127 |
|
|
5M iT4 PIN Prefix 1LV |
5075M |
900 kg (2000 lb.) |
125 |
122 |
1150 kg (2550 lb.) |
130 |
127 |
|
5085M |
900 kg (2000 lb.) |
125 |
122 |
1150 kg (2550 lb.) |
130 |
127 |
|
|
5090M |
900 kg (2000 lb.) |
125 |
122 |
1150 kg (2550 lb.) |
130 |
127 |
|
|
5100M |
900 kg (2000 lb.) |
125 |
122 |
1150 kg (2550 lb.) |
130 |
127 |
|
|
5115M |
900 kg (2000 lb.) |
125 |
122 |
1150 kg (2550 lb.) |
130 |
127 |
|
|
5R iT4 PIN Prefix 1LV |
5090R |
900 kg (2000 lb.) |
125 |
122 |
900 kg (2000 lb.) |
130 |
127 |
|
5100R |
900 kg (2000 lb.) |
125 |
122 |
900 kg (2000 lb.) |
130 |
127 |
|
|
5115R |
900 kg (2000 lb.) |
125 |
122 |
900 kg (2000 lb.) |
130 |
127 |
|
|
5125R |
900 kg (2000 lb.) |
125 |
122 |
900 kg (2000 lb.) |
130 |
127 |
|
|
5020 |
5620 |
900 kg (2000 lb.) |
125 |
122 |
900 kg (2000 lb.) |
131 |
127 |
|
5720 |
900 kg (2000 lb.) |
125 |
122 |
900 kg (2000 lb.) |
131 |
127 |
|
|
5820 |
900 kg (2000 lb.) |
125 |
122 |
900 kg (2000 lb.) |
131 |
127 |
|
|
1 Rear ballast
box required.
|
