Adjust Front Tread of Tractor

CC1028079-UN-16MAY06

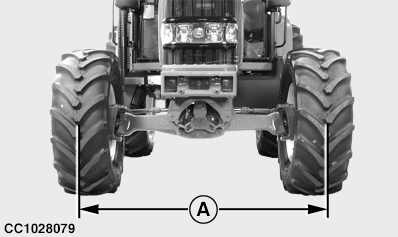

A - Tractor Front Tread

Adjust tractor steering stop, front axle oscillation stops, and fender positions so that no interference occurs when the front axle oscillates.

See your tractor Operator's Manual to make adjustments.

To maximize loader digging depth, full turn radius and full oscillation, stationary fenders are required. Order from your John Deere dealer.

Tractor		Tread setting values
Series	Models	1750—1850 mm (5 ft. 9 in.—6 ft. 1 in.)	1750—1950 mm (5 ft. 9 in.—6 ft. 4-3/4 in.)
5020	5620	X
	5720	X
	5820	X
5M/R Tier 3 PIN Prefix 1L0	5070	X
	5080	X
	5090	X
	5100	X
5M Tier 3 PIN Prefix 1LV	5085M	X
	5095M	X
	5105M	X
5M/R iT4 PIN Prefix 1LV	5075	X
	5085	X
	5090	X
	5100	X
	5115	X
6000	6100	X
	6200	X
	6300	X
	6400	X
	6600		X
	6800		X
	6900		X
6006	6506		X
6010	6010	X
	6110	X
	6210	X
	6310	X
	6410	X
	6510		X
	6610		X
	6810		X
	6910		X
6015 without cab	6515		X

Tractor		Tread setting values
Series	Models	1750—1850 mm (5 ft. 9 in.—6 ft. 1 in.)	1750—1950 mm (5 ft. 9 in.—6 ft. 4-3/4 in.)

6020	6020	X
	6120	X
	6220	X
	6320	X
	6420	X
	6520		X
	6620		X
	6820		X
	6920		X
7020 without cab	7320		X
6025 without cab	6525	X
6030	6130	X
	6230	X
	6330	X
	6430	X
	6530		X
	6534	X
	6630		X
	6830		X
	6930		X
7030E	7430E		X
	7530E		X
7030	7430		X
	7530		X
6MC IT4	6090MC	X
	6100MC	X
	6110MC	X

Tractor		Tread setting values
Series	Models	1750—1850 mm (5 ft. 9 in.—6 ft. 1 in.)	1750—1950 mm (5 ft. 9 in.—6 ft. 4-3/4 in.)
6MC Tier 4	6095MC	X
	6105MC	X
	6115MC	X
6RC IT4	6090RC	X
	6100RC	X
	6110RC	X
6RC Tier 4	6095RC	X
	6105RC	X
	6115RC	X
6M IT4	6105M	X
	6115M	X
	6125M	X
	6130M	X
	6140M	X
	6150M		X
	6170M		X
6M Tier 4	6110M	X
	6120M	X
	6130M	X
	6135M		X
	6145M		X
	6155M		X
	6175M		X
	6195M		X

Tractor		Tread setting values
Series	Models	1750—1850 mm (5 ft. 9 in.—6 ft. 1 in.)	1750—1950 mm (5 ft. 9 in.—6 ft. 4-3/4 in.)

6R IT4	6105R	X
	6115R	X
	6125R	X
	6130R	X
	6140R		X
	6150R		X
	6170R		X
	6190R		X
	6210R		X
6R Tier 4	6110R	X
	6120R	X
	6130R	X
	6135R		X
	6145R		X
	6155R		X
	6175R		X
	6195R		X
	6215R		X
	6230R		X
	6250R		X
