Digging Teeth

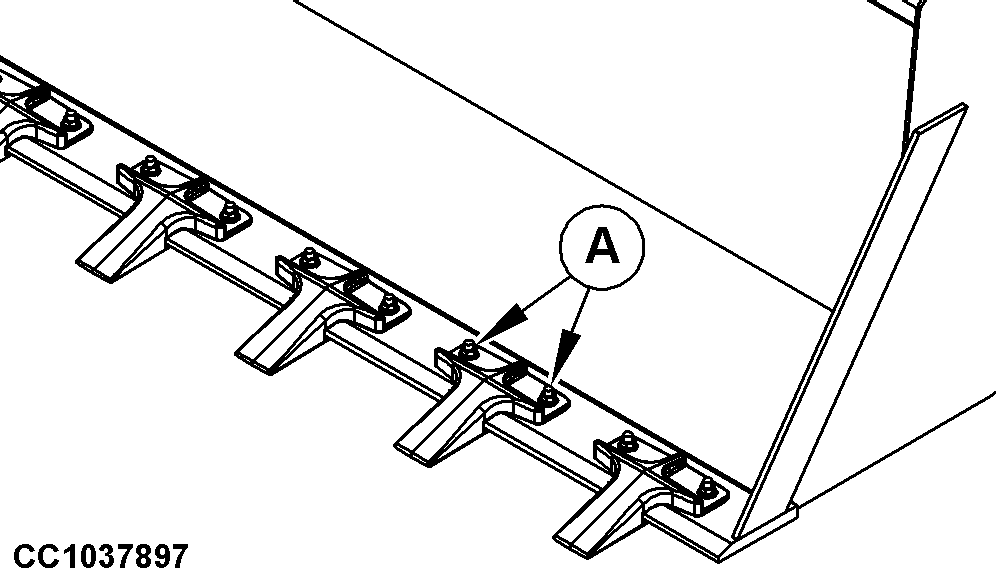

CC1037897
CC1037897-UN-17JUL12

A - M12 x 50 Cap Screw with Flange

Digging teeth cannot be used with the replaceable cutting edge. Use teeth for digging in hard ground.

Install each tooth using M12 x 50 cap screw with flange (A) and flange nuts.

OUCC006,00019CD-19-20121121
