643R Loader: Approved 2WD Tractors, Rear Ballast and Approved Front Tires

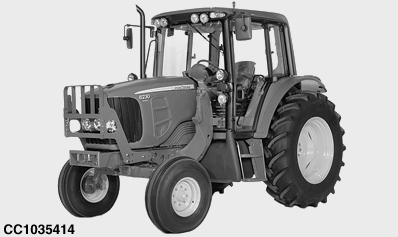

CC1035414-UN-09JAN12
To help prevent personal injury or death caused by
tractor rollover, be sure tractor is equipped with rollover protective
structure (ROPS) and approved seat belt. Ensure stability of tractor
and loader by adding the recommended amount of ballast to the rear
hitch of tractor.
To prevent tire failure, use only tires with load index equal or greater than those shown in following tables.
Compatibility shown in following tables is given for Premium, non-Premium, SE and non-SE tractors.
See your tractor Operator's Manual to find allowed tire sizes.
Set tire pressure to the maximum work pressure for a maximum speed of 10 km/h (6.2 mph).
See your tractor Operator's Manual, tire manufacturer's documentation or your John Deere dealer to know tire specifications.
|
Tractor |
643R Loader NSL |
643R Loader MSL |
643R Loader HSL |
|||||||
|---|---|---|---|---|---|---|---|---|---|---|
|
Series |
Models |
Hitch Ballast1 |
Minimum Load Capacity per Tire at 10 km/h (6.2 mph) |
Hitch Ballast1 |
Minimum Load Capacity per Tire at 10 km/h (6.2 mph) |
Hitch Ballast1 |
Minimum Load Capacity per Tire at 10 km/h (6.2 mph) |
|||
|
6R iT4 |
6140R |
1150 kg (2550 lb.) |
2625 kg (5787 lb.) |
1800 kg (4000 lb.) |
2625 kg (5787 lb.) |
1800 kg (4000 lb.) |
2625 kg (5787 lb.) |
|||
|
6150R |
1150 kg (2550 lb.) |
2625 kg (5787 lb.) |
1800 kg (4000 lb.) |
2625 kg (5787 lb.) |
1800 kg (4000 lb.) |
2625 kg (5787 lb.) |
||||
|
6R Tier 4 |
6145R |
1500 kg (3300 lb.) |
2625 kg (5787 lb.) |
1800 kg (4000 lb.) |
2625 kg (5787 lb.) |
1800 kg (4000 lb.) |
2625 kg (5787 lb.) |
|||
|
6155R |
1500 kg (3300 lb.) |
2625 kg (5787 lb.) |
1800 kg (4000 lb.) |
2625 kg (5787 lb.) |
1800 kg (4000 lb.) |
2625 kg (5787 lb.) |
||||
|
6M iT4 |
6140M |
1150 kg (2550 lb.) |
2625 kg (5787 lb.) |
NOT OK |
NOT OK |
NOT OK |
NOT OK |
|||
|
6150M |
1150 kg (2550 lb.) |
2625 kg (5787 lb.) |
1800 kg (4000 lb.) |
2625 kg (5787 lb.) |
1800 kg (4000 lb.) |
2625 kg (5787 lb.) |
||||
|
6M Tier 4 |
6145M |
1500 kg (3300 lb.) |
2625 kg (5787 lb.) |
1800 kg (4000 lb.) |
2625 kg (5787 lb.) |
1800 kg (4000 lb.) |
2625 kg (5787 lb.) |
|||
|
6155M |
1500 kg (3300 lb.) |
2625 kg (5787 lb.) |
1800 kg (4000 lb.) |
2625 kg (5787 lb.) |
1800 kg (4000 lb.) |
2625 kg (5787 lb.) |
||||
|
6030 with cab |
6530 |
1150 kg (2550 lb.) |
2625 kg (5787 lb.) |
1500 kg (3300 lb.) |
2625 kg (5787 lb.) |
1500 kg (3300 lb.) |
2625 kg (5787 lb.) |
|||
|
6630 |
1150 kg (2550 lb.) |
2625 kg (5787 lb.) |
1500 kg (3300 lb.) |
2625 kg (5787 lb.) |
1500 kg (3300 lb.) |
2625 kg (5787 lb.) |
||||
|
6830 |
1150 kg (2550 lb.) |
2625 kg (5787 lb.) |
1500 kg (3300 lb.) |
2625 kg (5787 lb.) |
1500 kg (3300 lb.) |
2625 kg (5787 lb.) |
||||
|
6930 |
1150 kg (2550 lb.) |
2625 kg (5787 lb.) |
1500 kg (3300 lb.) |
2625 kg (5787 lb.) |
1500 kg (3300 lb.) |
2625 kg (5787 lb.) |
||||
|
6010 |
6010 |
1500 kg (3300 lb.) |
2000 kg (4409 lb.) |
NOT OK |
NOT OK |
NOT OK |
NOT OK |
|||
|
6110 |
1500 kg (3300 lb.) |
2000 kg (4409 lb.) |
NOT OK |
NOT OK |
NOT OK |
NOT OK |
||||
|
6210 |
1500 kg (3300 lb.) |
2000 kg (4409 lb.) |
NOT OK |
NOT OK |
NOT OK |
NOT OK |
||||
|
6310 |
1500 kg (3300 lb.) |
2000 kg (4409 lb.) |
NOT OK |
NOT OK |
NOT OK |
NOT OK |
||||
|
6410 |
1500 kg (3300 lb.) |
2000 kg (4409 lb.) |
NOT OK |
NOT OK |
NOT OK |
NOT OK |
||||
|
6510 |
1500 kg (3300 lb.) |
2625 kg (5787 lb.) |
NOT OK |
NOT OK |
NOT OK |
NOT OK |
||||
|
6000 |
6100 |
1500 kg (3300 lb.) |
2000 kg (4409 lb.) |
NOT OK |
NOT OK |
NOT OK |
NOT OK |
|||
|
6200 |
1500 kg (3300 lb.) |
2000 kg (4409 lb.) |
NOT OK |
NOT OK |
NOT OK |
NOT OK |
||||
|
6300 |
1500 kg (3300 lb.) |
2000 kg (4409 lb.) |
NOT OK |
NOT OK |
NOT OK |
NOT OK |
||||
|
6400 |
1500 kg (3300 lb.) |
2000 kg (4409 lb.) |
NOT OK |
NOT OK |
NOT OK |
NOT OK |
||||
|
1 Rear ballast
box required.
|
YL00305,000048C-19-20160415 |
