Switch Console (Continued)

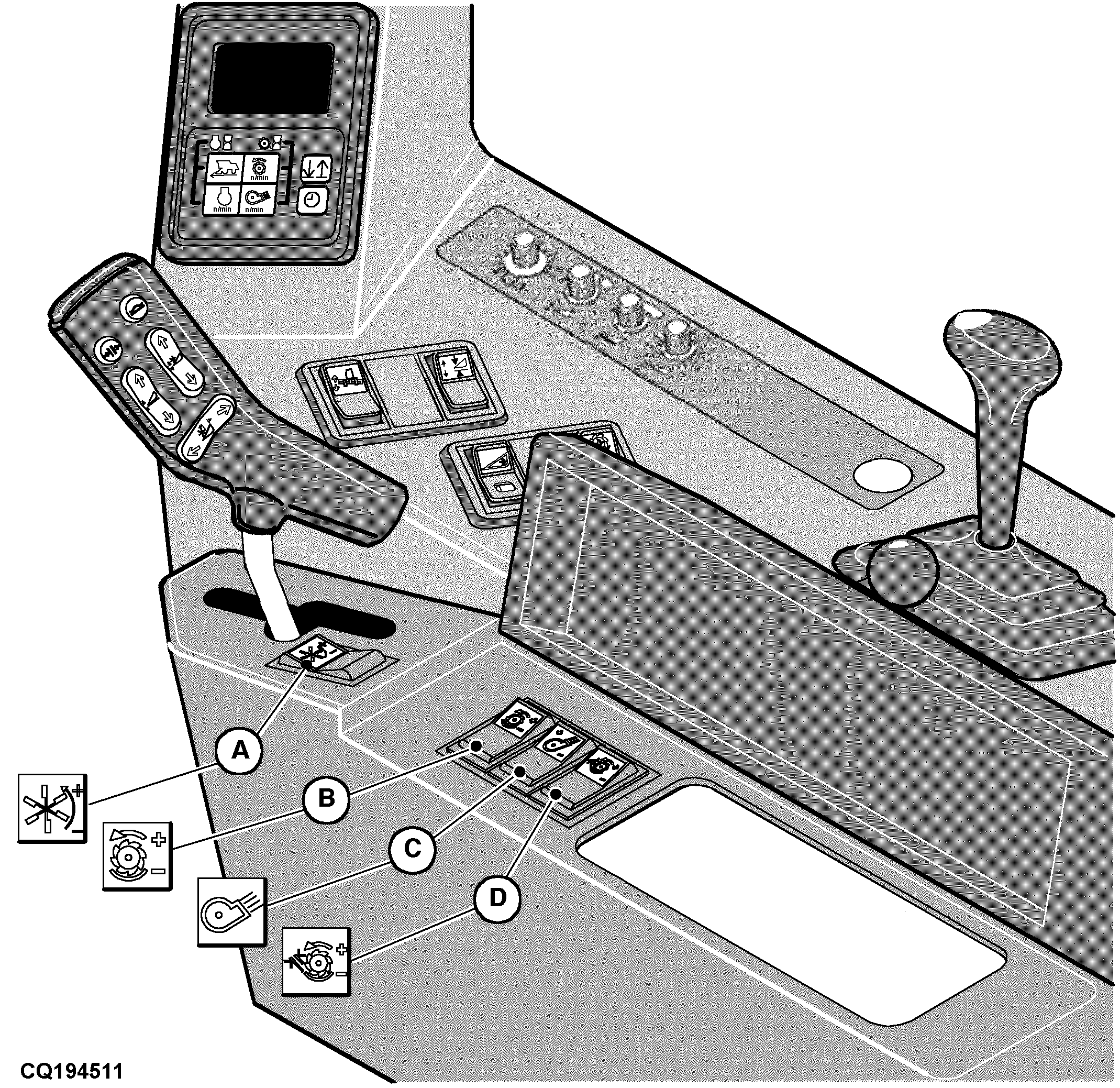

CQ194511

A-Reel speed switch

B-Threshing cylinder speed switch

C-Fan Speed Switch

D-Concave clearance adjusting switch

AG,CO03622,1381 -19-13MAR02-1/1
