Selector Switch for Header Tilt Adjustment and Fore-and-Aft Adjustment of Reel

This function can only be activated with road safety switch in field position and engine running.

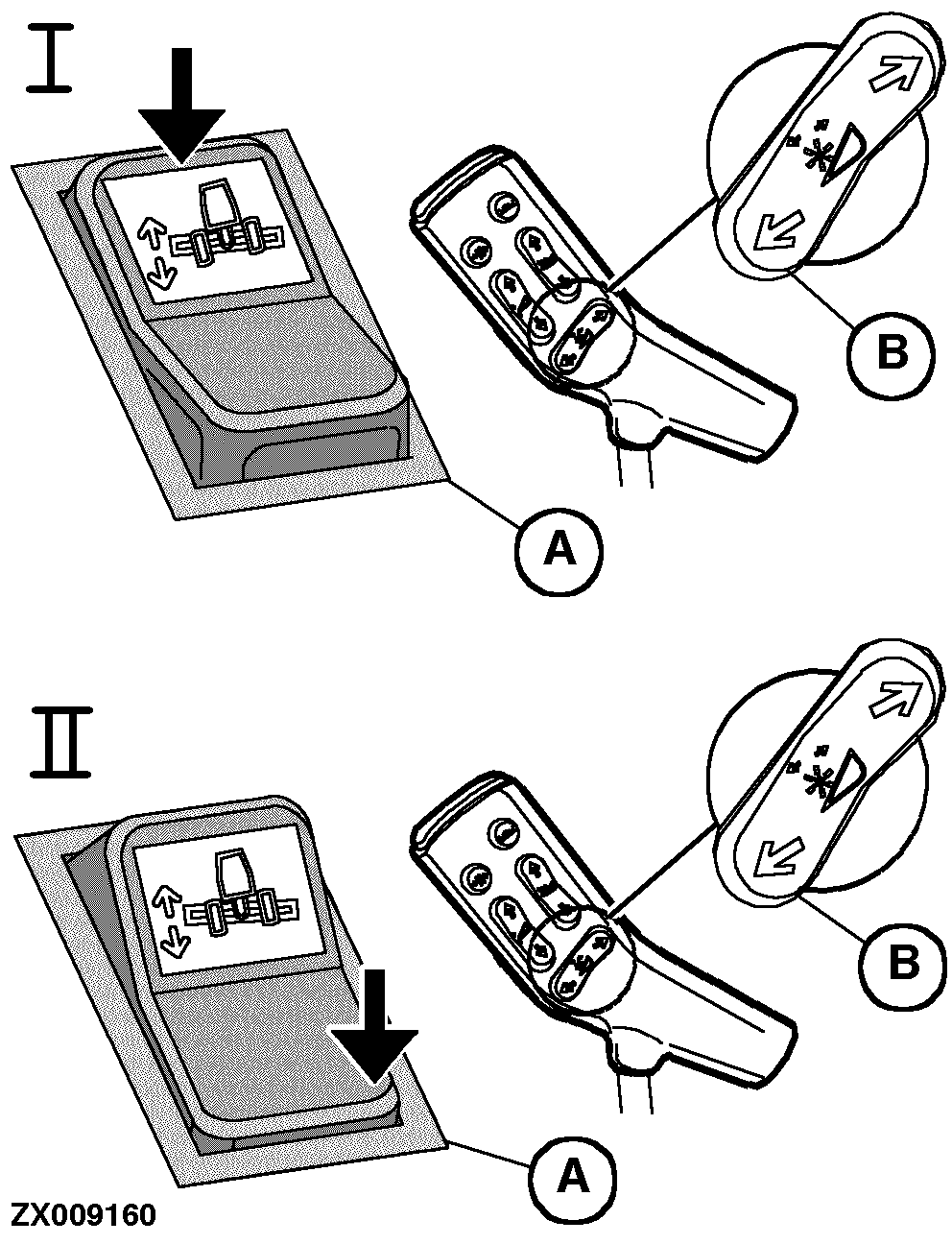

Switch (A) changes the function of switch (B) as follows:

Manual Header Tilt Adjustment

·With switch (A) in position (I), rocker switch (B) adjusts the header tilt.

Operation:

When using the header tilt adjustment function, it is possible to manually adapt header position to ground contours regardless of combine tilt.

NOTE: When the header tilt ajustement is used, it will disable the automatic header control. Press return to cut switch to enable it again.

Fore-and-Aft Adjustment of Reel

· With switch (A) in position (II), rocker switch (B) controls fore-and-aft adjustment of the reel.

I-Header tilt adjustment
II-Reel Fore-And-Aft Adjustment
