OMCQ39839: 1450, 1550, 1450 CWS, 1550 CWS, 1450 WTS and 1550 WTS Combines , Block File: AG_CO03622_1391_19

Ignition must be turned on for windshield wiper operation.

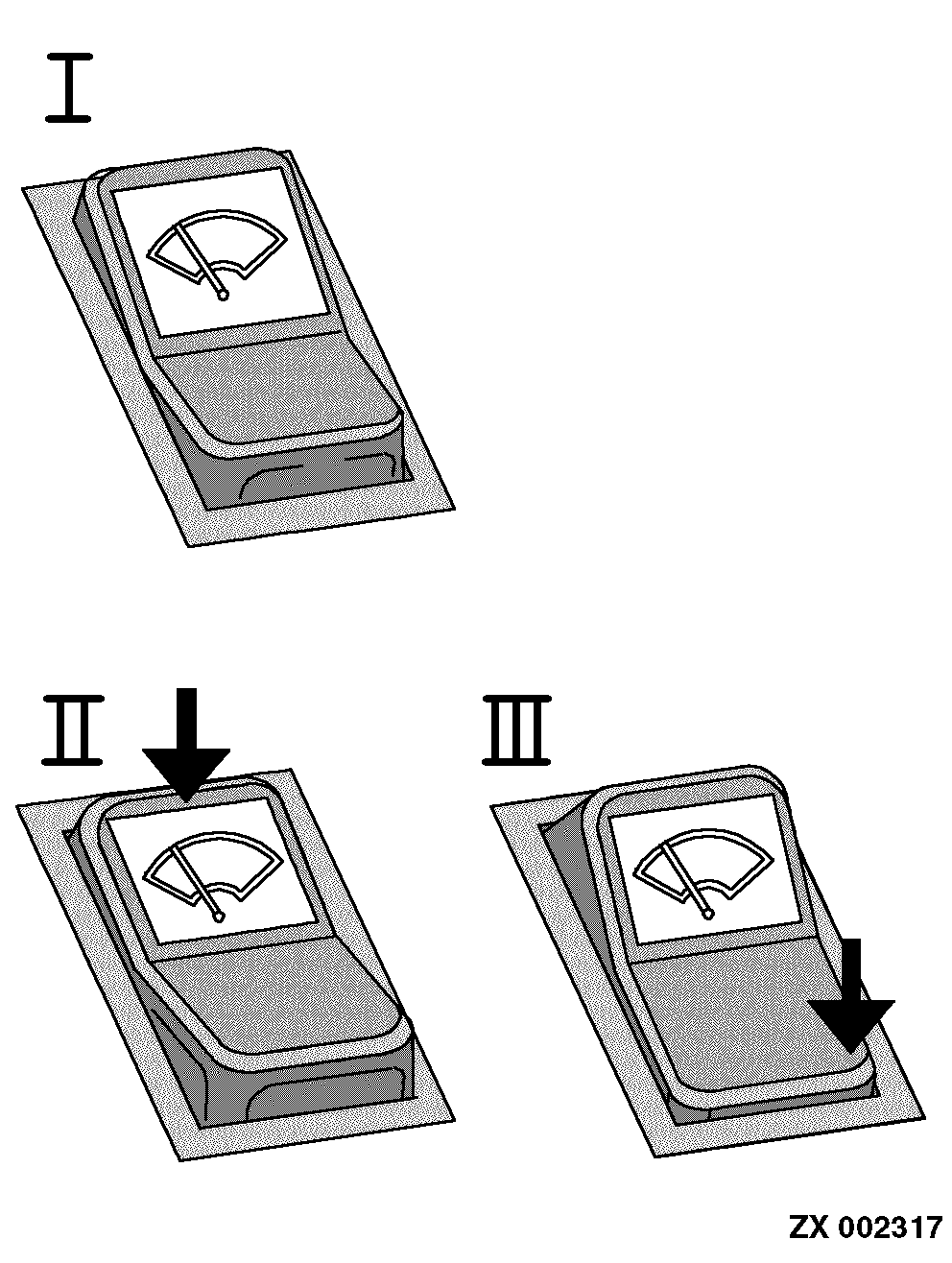

I- Windshield wiper off

II- Tumbler switch function Windshield wiper operates continuously.

III- Rocker switch function Windshield wiper completes one cycle (briefly touch switch to activate this function).

AG,CO03622,1391 -19-13MAR02-1/1
