Feeder House/Header Reverser

IMPORTANT: Reel must be raised before engaging reverser. Backing out a crop "slug" into a turning reel will bend it.

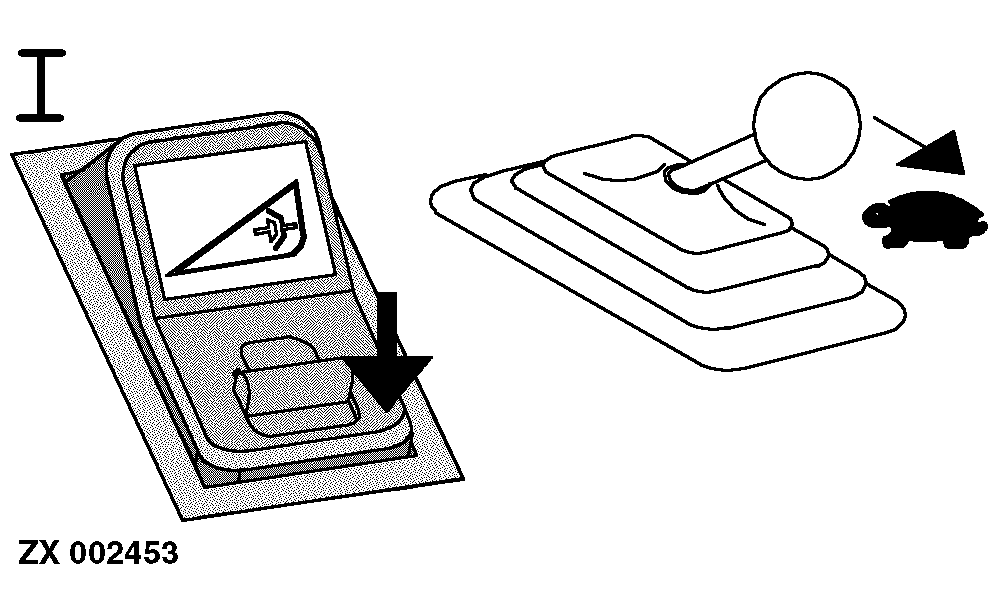

I - Disengage header drive (using header drive switch) and back up combine 1-2 m (3-6 ft). Run engine at slow idle speed.

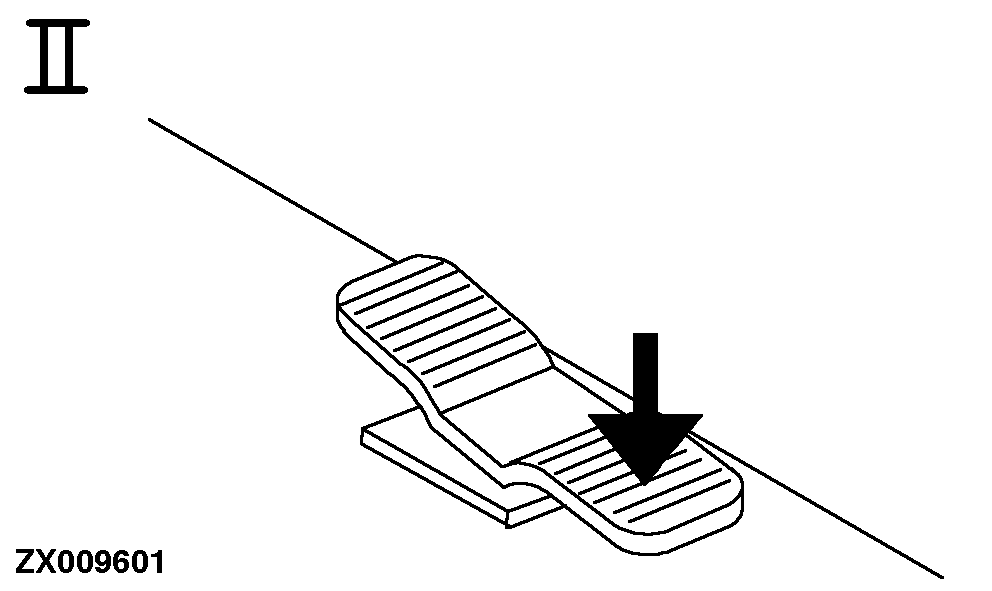

II - Step on left-hand side of reverser pedal and hold pedal down to reverse feeder house and platform.

NOTE: The pedal must be held down or it will not shift.

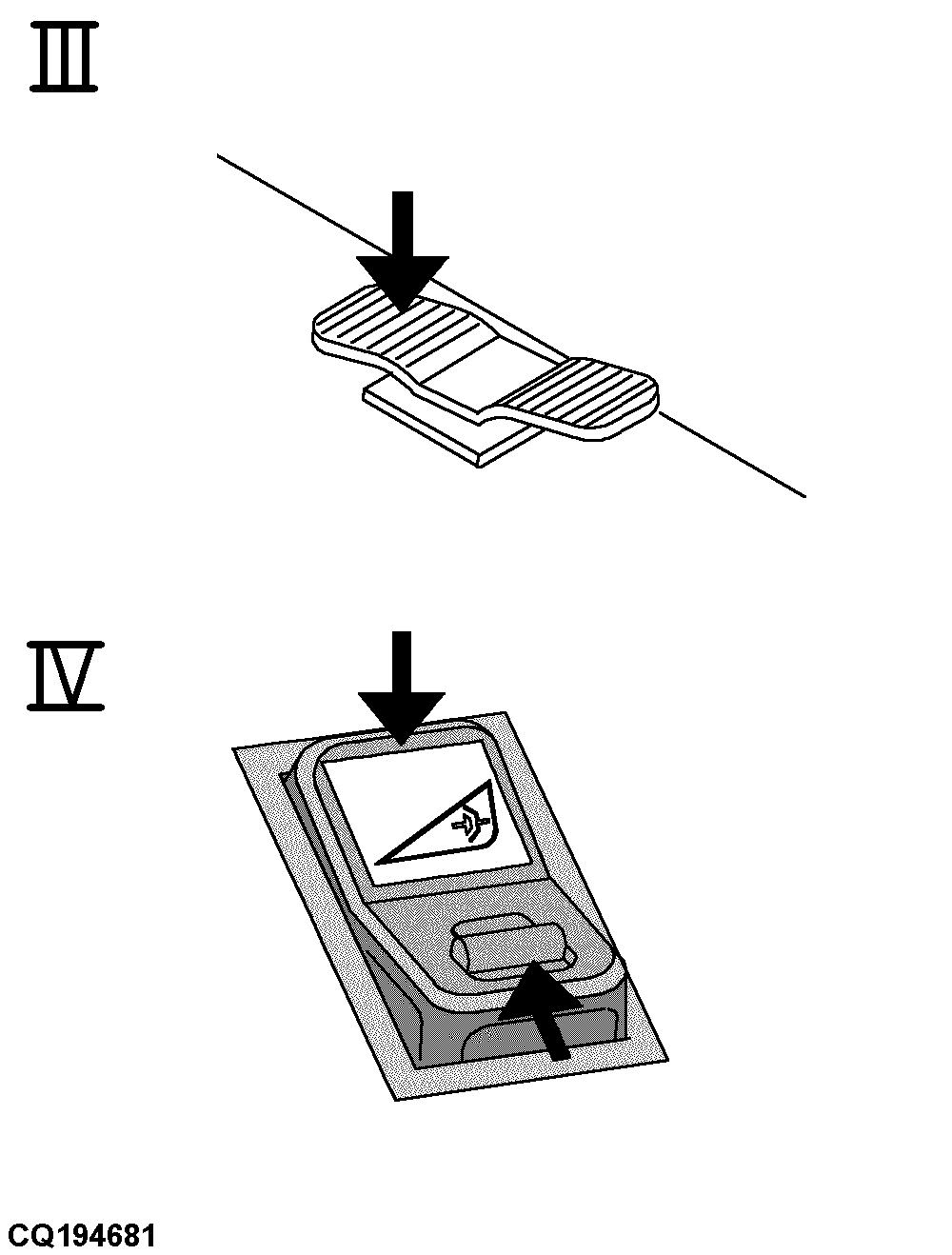

III - Step on right-hand side of reverser pedal to disengage reverser function.

IV - Engage header for normal function.

Run engine at high speed and resume harvesting.

IMPORTANT: During reverser operation, never attempt to force "slugs" through combine by repeated cycling of reverser drive. Repeated cycling shortens the life of components.

NOTE: The reverser works only with threshing engaged and header disengaged.

For emergency stop, use the quick "STOP" switch on the multi-function lever. In this case the reverser disengages with the pedal activated, to reengage the reverser is necessary deactivate and activate the pedal again.
