Infotrak Monitor Functions

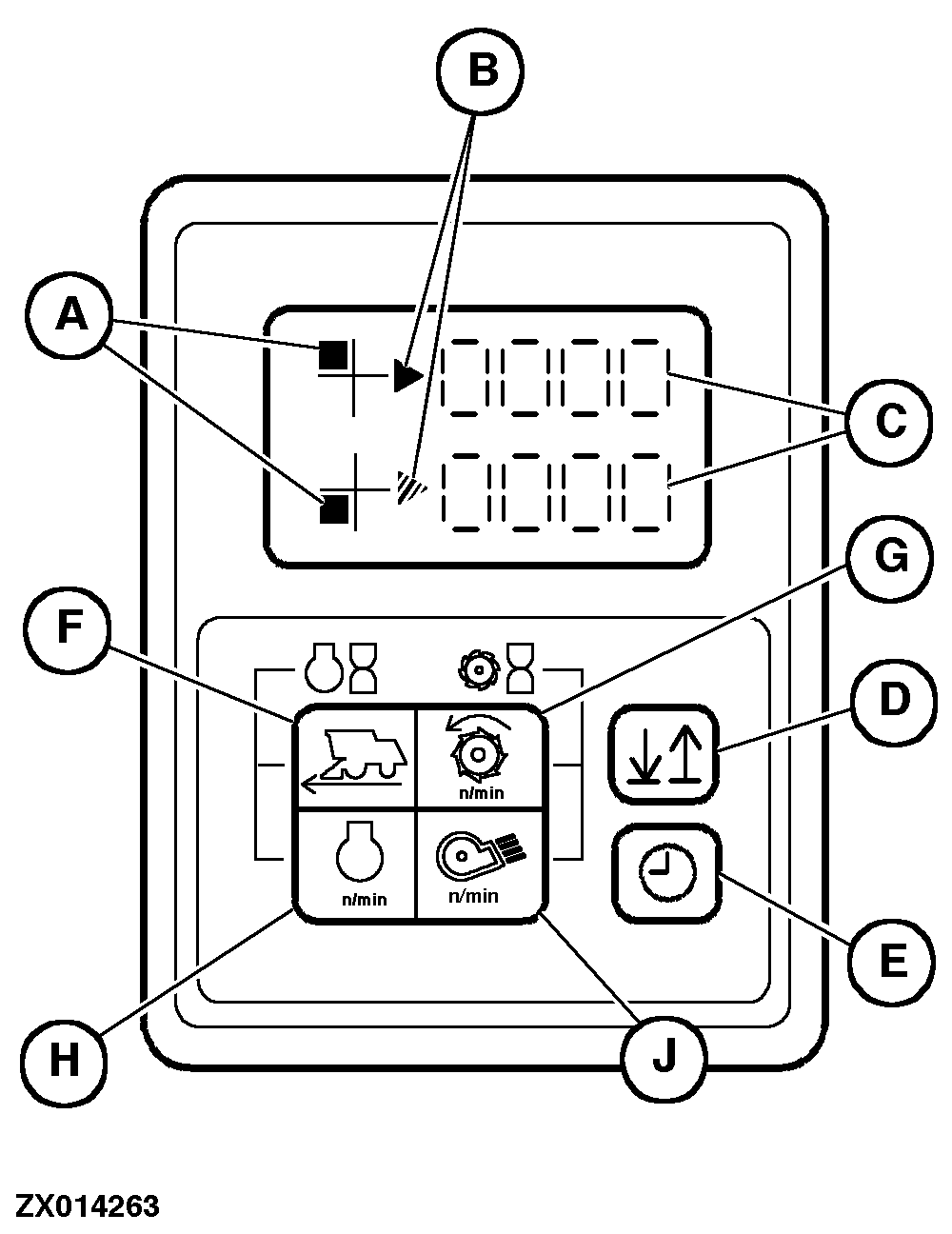

A - Position Indicator:

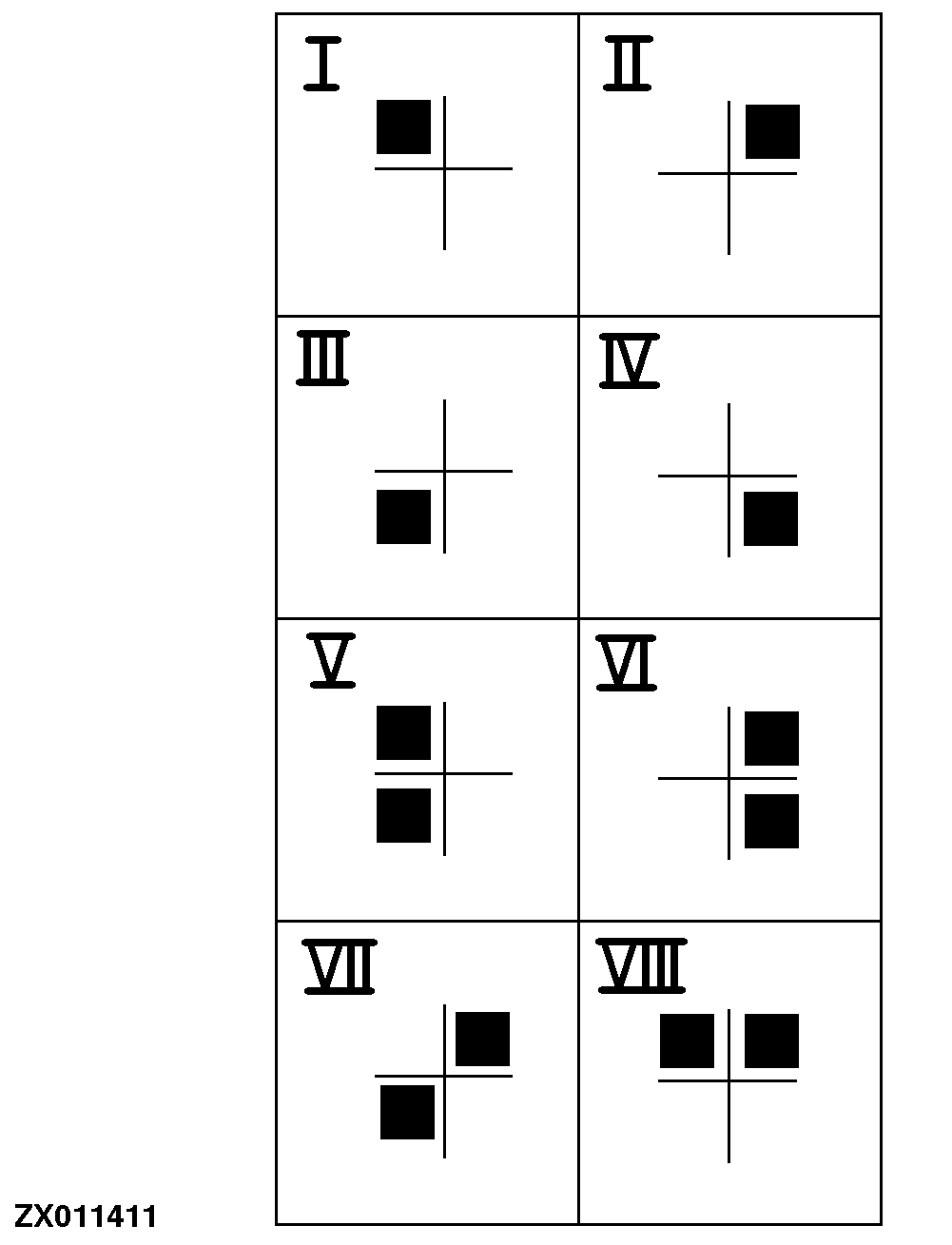

shows relationship between display and key or key combination (I-VII) pressed previously.

When activating infotrak monitor (starter switch in position I or II), the position indicator will be in upper left-hand position.

B - Line indicator:

shows the active line on the display panel

C - Display Panel (4 Digits):

shows the figure called up previously.

Possibilities:

Ground and other speeds, operating or working hours, time

Additional displays: SERVICE information "SEU" and concave spacing

Error codes:

In the event of a malfunction or error by the operator when operating the combine or running an automatic function, a two or three-digit number followed by an E (Error) is displayed. E. g. 234 E .

D - Line selector switch:

changes active line on the display panel

E - Clock:

press this key to display the time on the display panel

F - Key for ground speed display (I)

G - Key for cylinder speed display (II)

H - Key for engine speed display (III)

AG,CO03622,1438 -19-13AUG02-1/2

J - Key for fan speed display (IV) and enter key for calibration modes
