Setting and Displaying Time

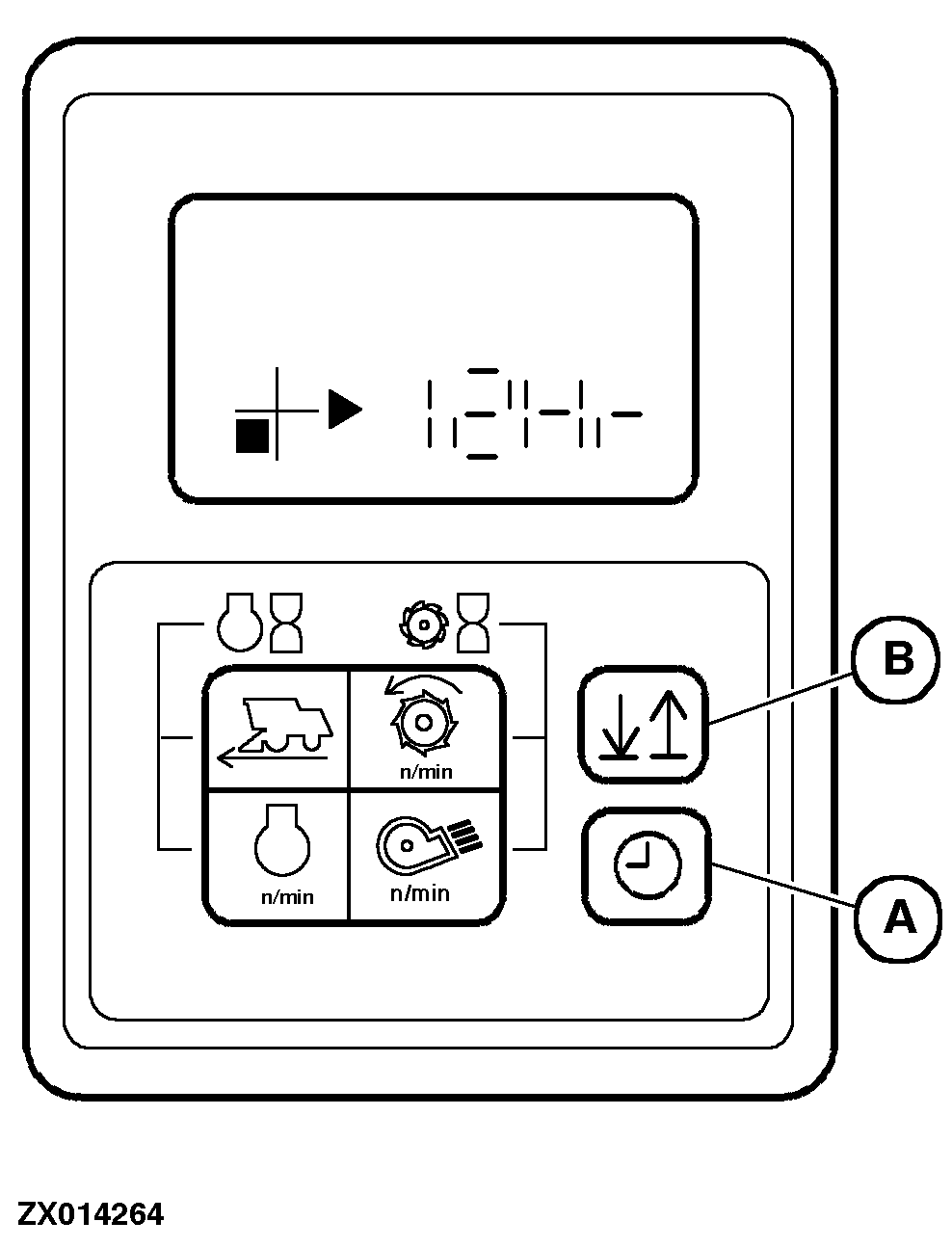

Make sure the keyswitch is OFF. Hold down clock switch (A) and, while holding it, turn the keyswitch ON. (I). In the display will initially appear "12Hr". If you continue to hold the touchswitch down, it will alternate every 3 seconds between '12Hr' and '24Hr'. This allows you to select either a 12 hour format or a 24 hour format. Release touchswitch when the desired format is displayed.

The clock should now be showing '12'. Depress switch (B) to increase the hours. The longer you hold it switch down, the faster the hours will increase.

NOTE: You can only increase (not decrease) the hours.

If you go past where you want to go, you will have to go full circle and try to catch it on the next pass. When you get close, you should let the switch up and then depress it again so it will increment at the slower rate. You'll catch on quickly.

Once you have the hours displayed properly, depress and release switch (A) and the display should show the minutes along with the hours. Again, as described before, depress switch (B) to increase the minutes. All other comments, above, apply. When the minutes are set the way you want them, depress switch (A) one last time and the clock is set.

NOTE: Clock must be readjusted whenever battery has been disconnected or battery switch has been in "Off "position.

AG,CO03622,1440 -19-07OCT02-1/1
