Input of Specific Machine Data

IMPORTANT: Each time different size drive wheels are installed or tire radius changes due to wear, the infotrak monitor must be calibrated accordingly.

Activate Input Status

Press key combination (A + B) and simultaneously turn starter switch from position (0) to position (I). The position indicator will move to upper left-hand position.

Data Input

Press key (A): displayed value will increase.

Press key (C): displayed value will decrease.

Data Storage

Press key combination (B + D). At the same time the position indicator will move to another field (upper right-hand, lower right-hand, lower left-hand field).

Deactivate Input Status

After input and storage of all data, turn starter switch to position (0).

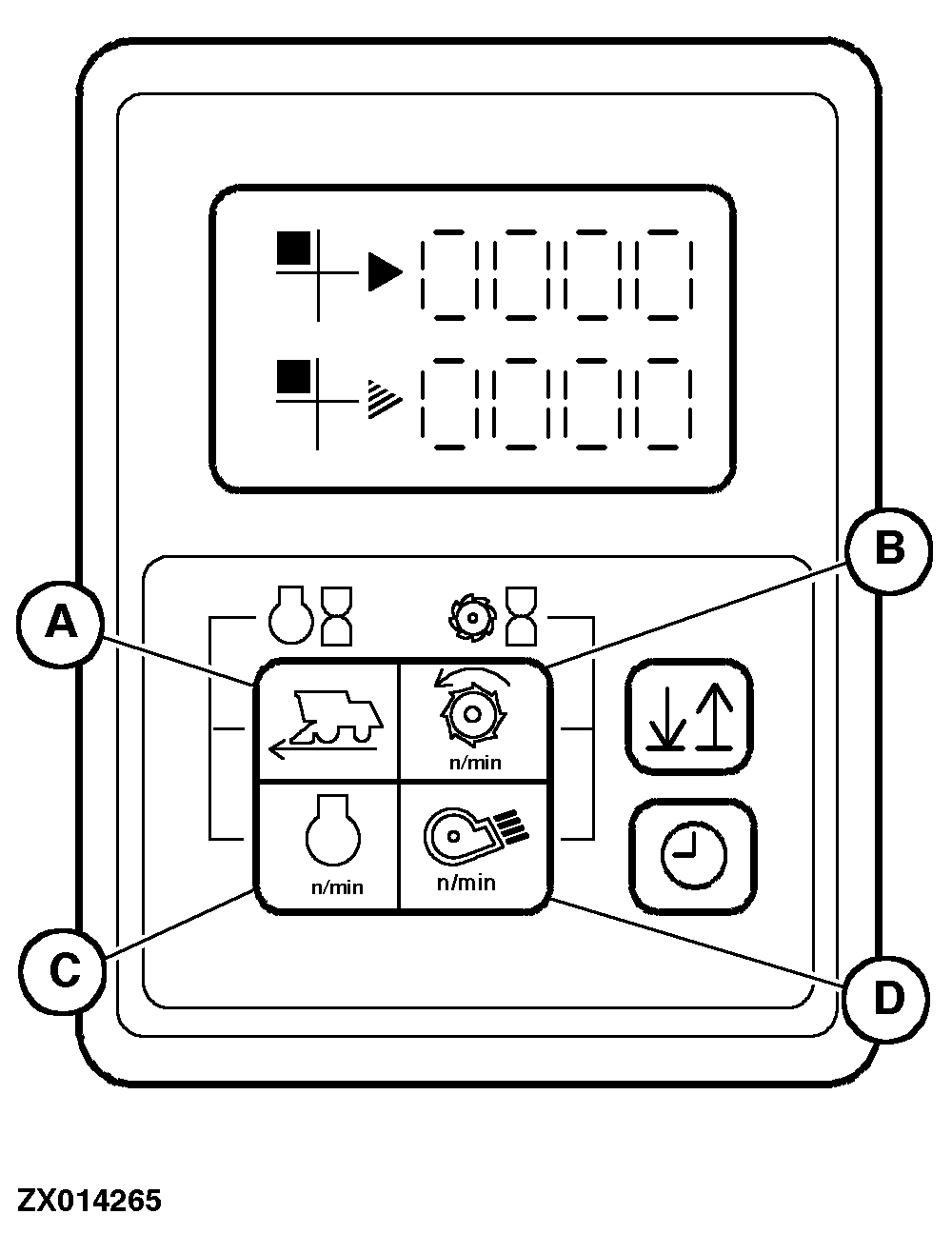

A-Key for ground speed display
B-Key for cylinder speed display
C-Key for engine speed display
D-Key for fan speed display

AG,CO03622,1441 -19-04FEB02-1/1
