Setting Threshing Cylinder Alarm Speed

With engine running, engage separator.

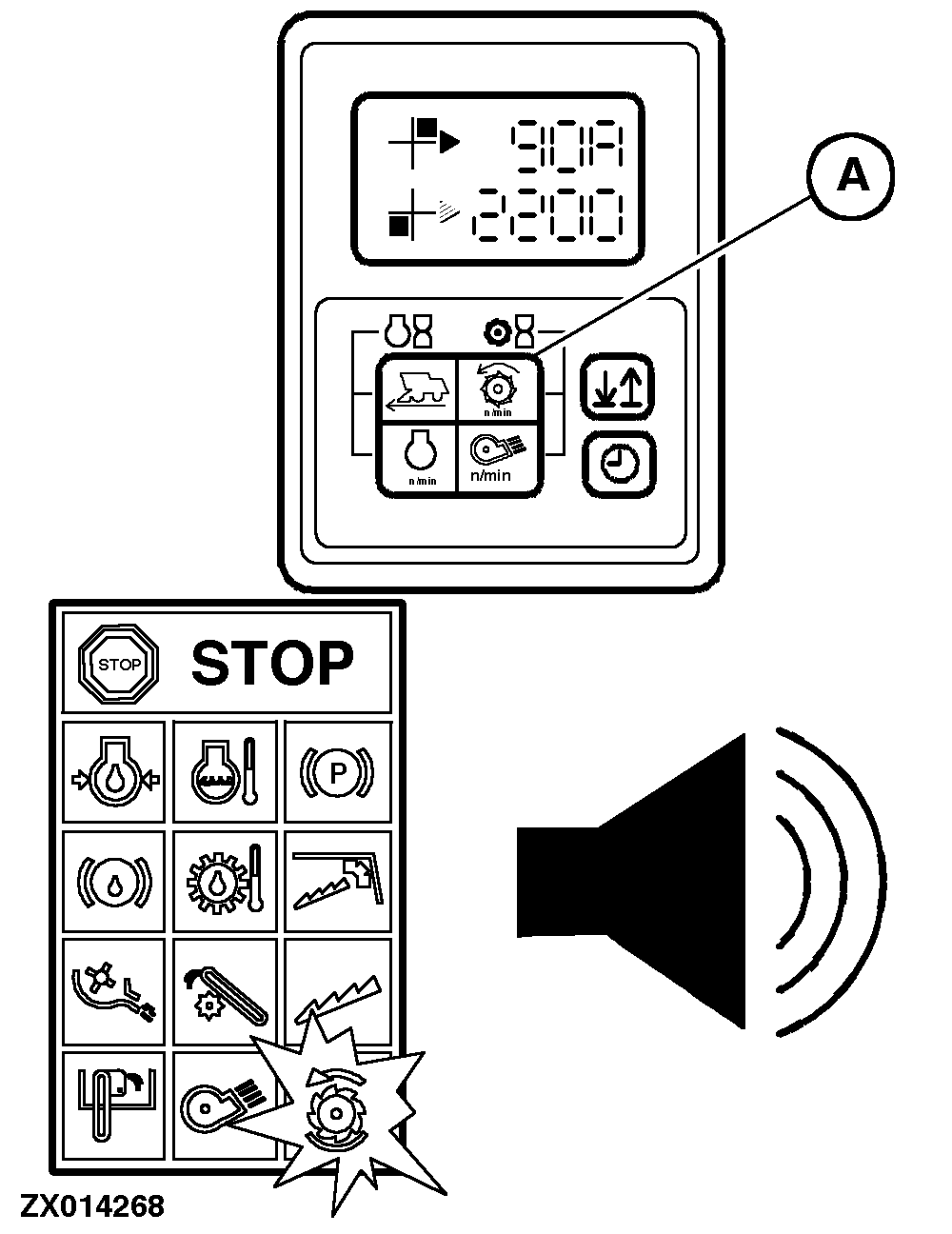

Press key (A) to display cylinder speed. Continue to press key (A) (for approx. 2 seconds) until an "A" appears at the last digit of the displayed speed. Now alarm speed is 75% of the displayed speed.

If cylinder speed drops below alarm speed during operation, the cylinder speed indicator light will glow and a continuous warning signal will be heard.
