Setting Fan Alarm Speed

With engine running, engage separator.

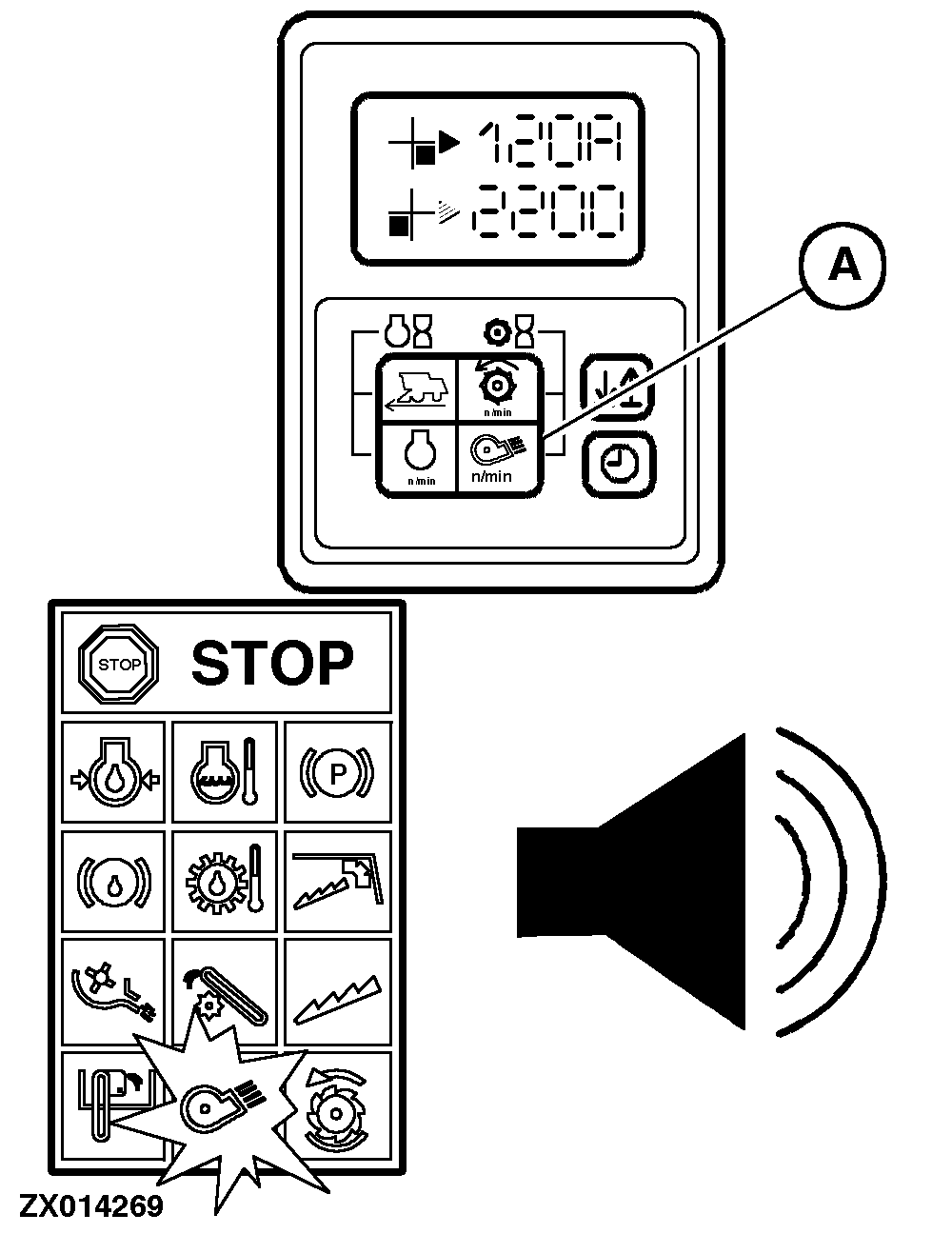

Press key (A) to display fan speed. Continue to press key (A) (for approx. 2 seconds) until an "A" appears at the last digit of the displayed speed. Now alarm speed is 75% of the displayed speed.

If fan speed drops below alarm speed during operation, the fan speed indicator light will glow and a continuous warning signal will be heard.

AG,CO03622,1449 -19-13MAR02-1/1
