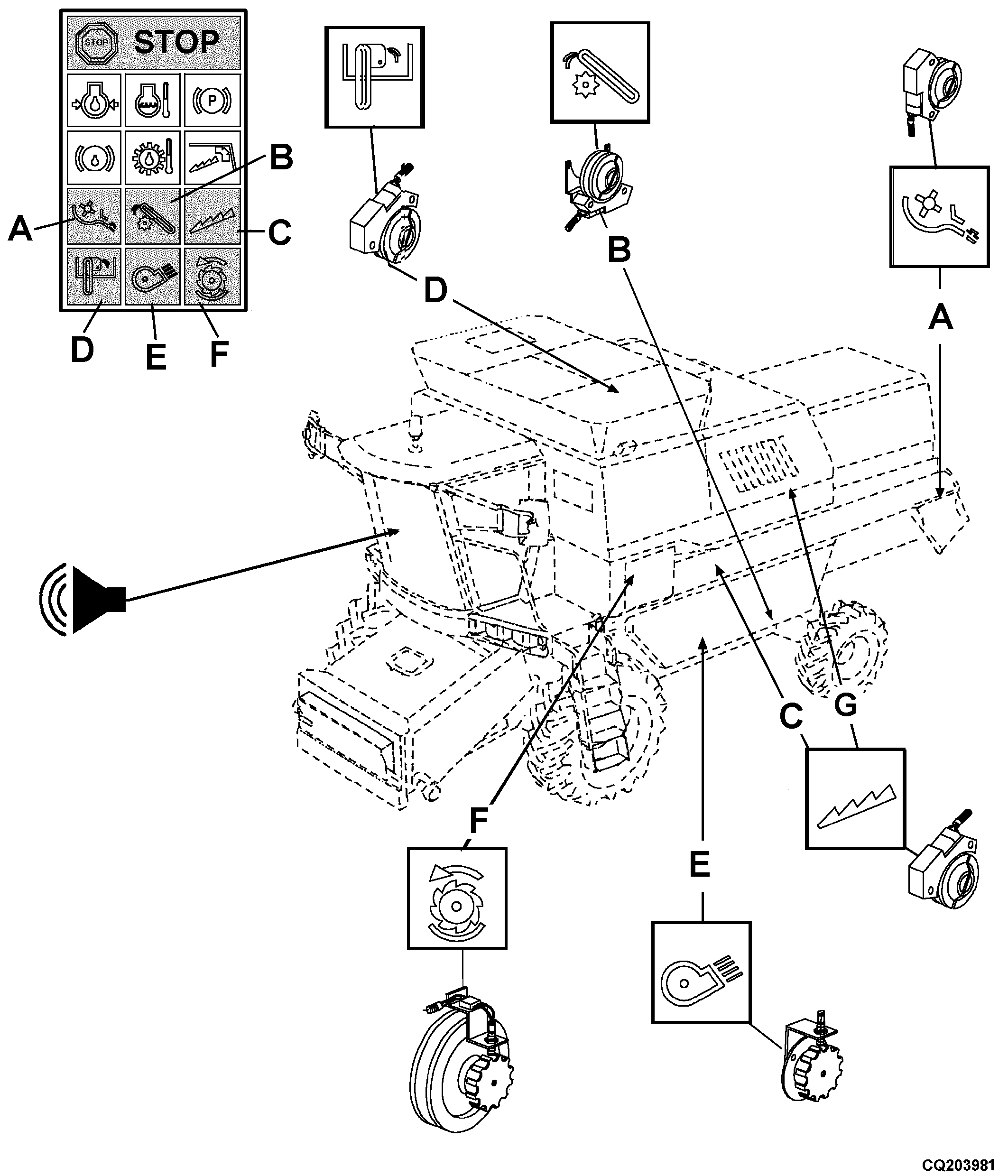

A-Straw chopper
B-Tailings elevator

C-Straw Walkers
D-Clean grain elevator

E-Fan
F-Threshing cylinder

G-Power Separator (1450 WTS and 1550 WTS)

AG,CO03622,1451 -19-08NOV02-1/3

In the event of a malfunction, the low shaft speed monitor system activates corner post indicator lights and a intermittent acoustic warning signal.

With engine shut off, electrical circuit on and separator engaged, all five or six indicator lights must glow and the warning signal must keep mute. With engine running (at fast idle) and separator engaged, all indicator lights should go out and the warning signal must keep mute.

NOTE: Reset the alarm threshold at the Infotrak monitor every time the threshing cylinder and/or fan speed are altered.

The other shafts are adjusted in the factory with pre-set speeds.

AG,CO03622,1451 -19-08NOV02-2/3

There is the possibility to reprogram them using the following procedure:

1. With the engine running and the threshing engaged, set engine to maximum rpm.

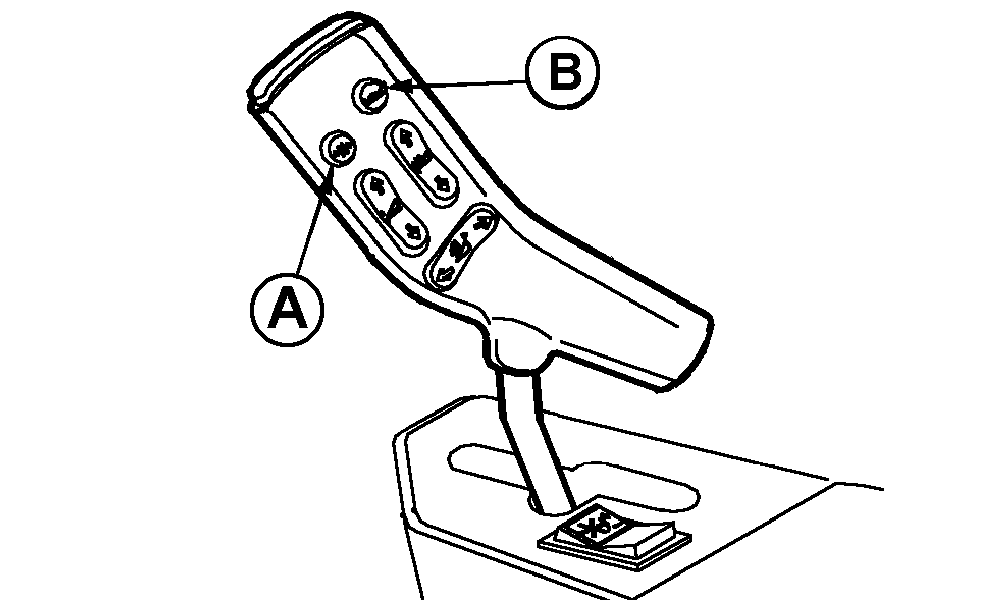

2. Press switches (A) and (B) on the multifunction lever simultaneously for 3 seconds. An intermittent warning signal will be heard for 3 times and the indicator lights will also glow 3 times. When this happens the 5 shafts will be reprogrammed for a new condition.
3. To go back to standard adjustment, press the two switches for 6 seconds. The confirmation is given through an intermittent warning signal that will be heard 6 times and the indicator lights will also glow 6 times.

A-Return to cut
B-Return to cut/flotation

AG,CO03622,1451 -19-08NOV02-3/3
