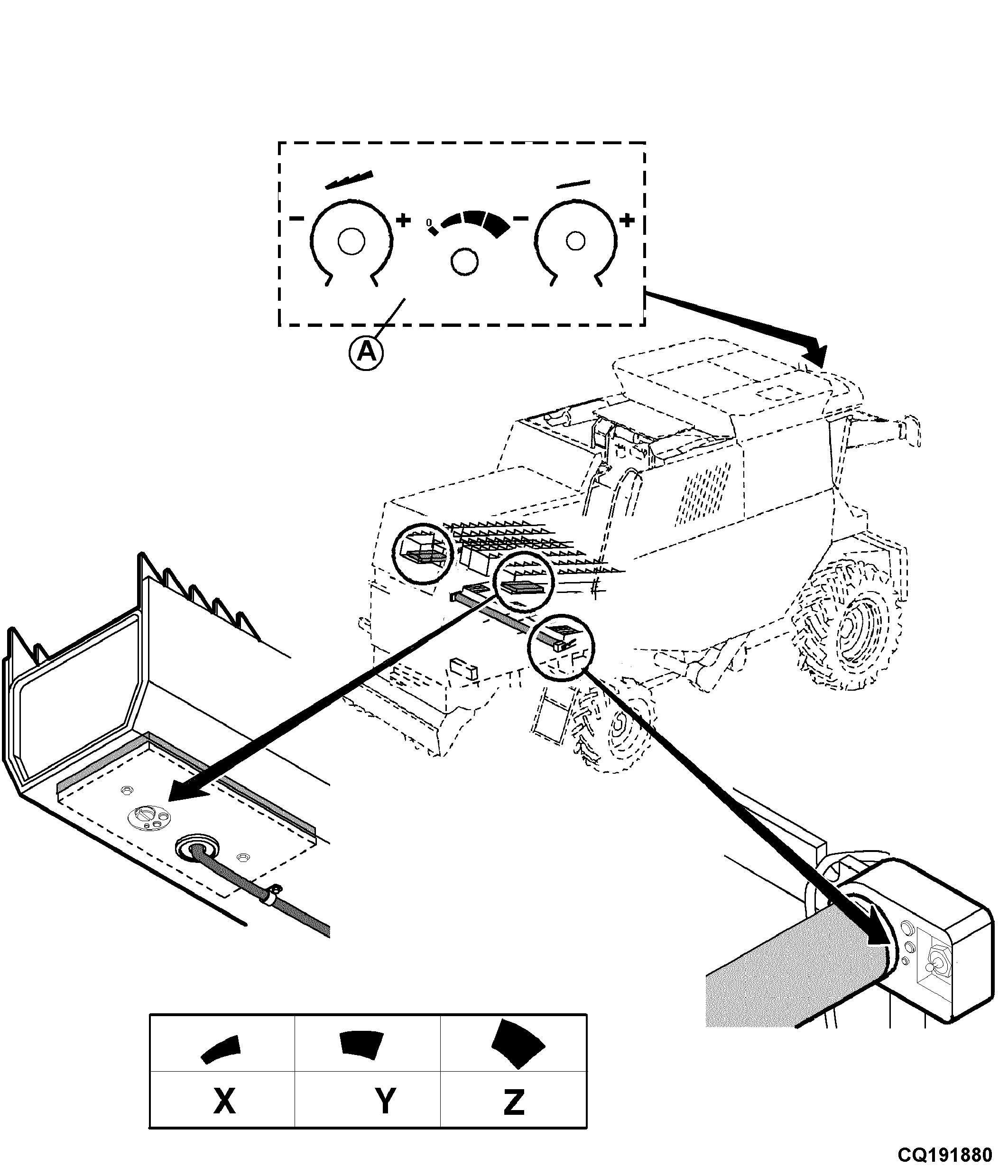

The amplification of the sensors signal is preselected in the cab at the adjusting/selecting unit of harvest performance monitor (A).

Sensor sensibility adjustment of cleaning shoes and straw walkers:

X - Higher sensor sensitivity for finer grain crops

Y - Medium sensor sensitivity for medium grain crops (covers a wide range of standard crops)

Z - Lower sensor sensitivity for coarse grain crops

NOTE: Always leave the sieve and straw walker sensors at a medium setting.
