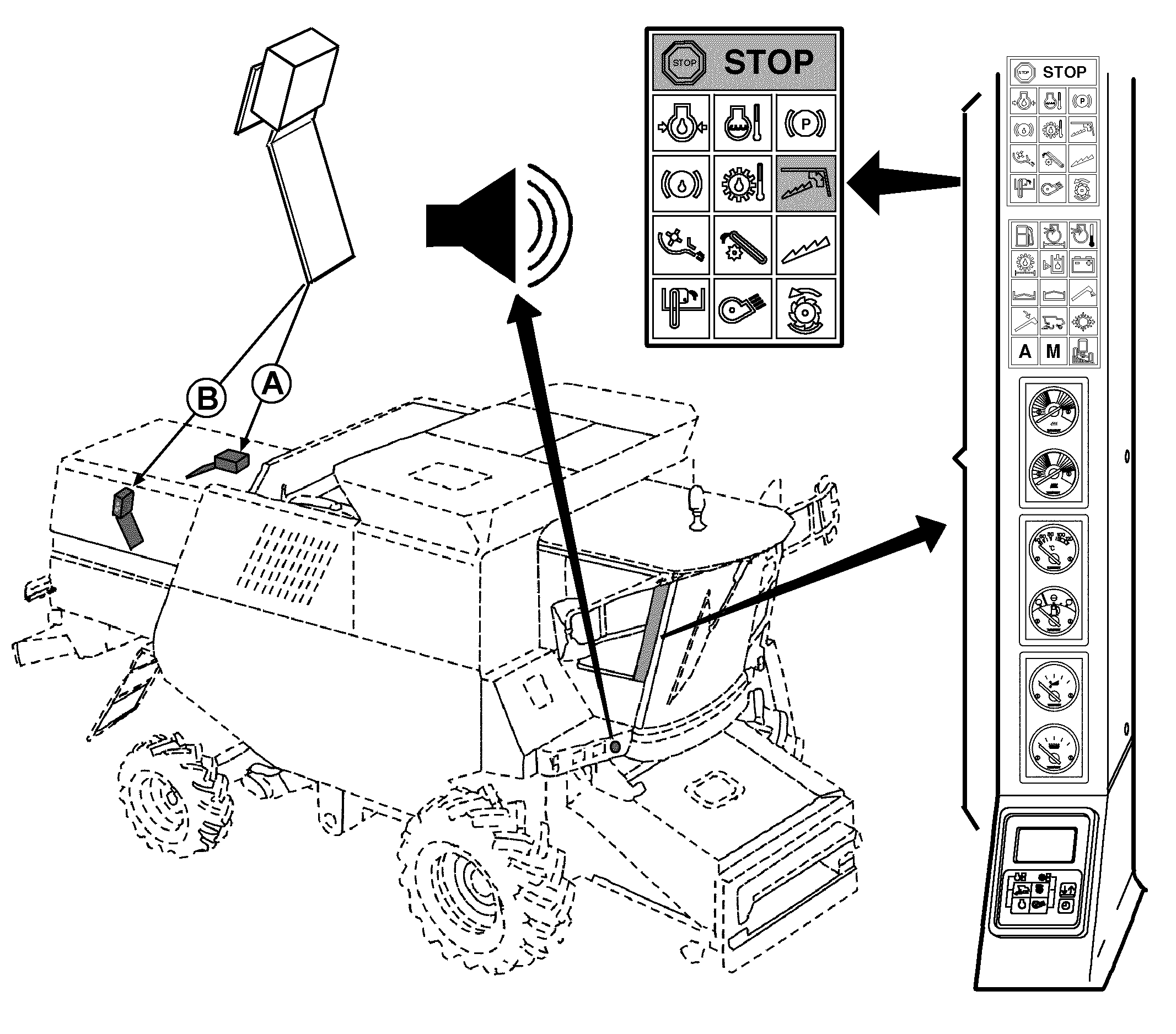

Straw warning device

CQ194751


A-Sending unit above straw walkers

B-Sending unit above straw deflector (chopper) at end of straw hood



Daily Checks

Check straw warning device daily with engine shut off and ignition turned on before operating the combine.

Press contacts by hand, moving them against solenoid to make sure signal sounds correctly.
