Work Lights on Cab Roof and Unloading Auger

The two work lights (A) are adjusted to the width of 6,10 m (20 pés). If necessary, adjust the width according to the header used.

The work lights (B) illuminate the header center.

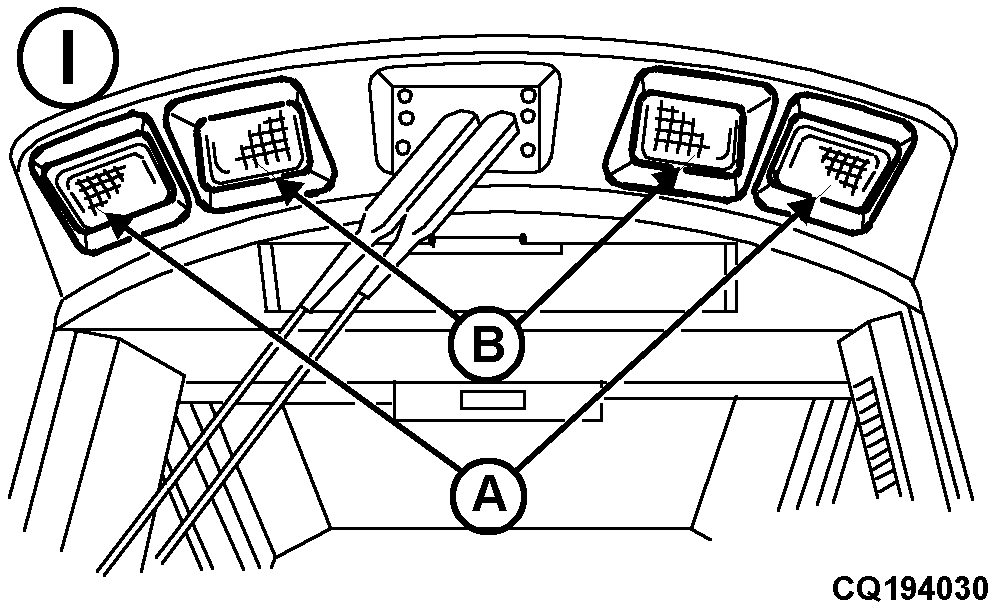

I-Work lights on cab roof

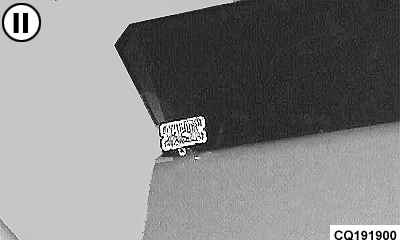

II-Work light at unloading auger

AG,CO03622,1466 -19-13AUG02-1/1
