Tumbler Switch for Work Lights on Operator'S Platform and Mirror Arms

The two additional work lights on the operator's platform (inner lights), the work lights on the mirror arms and the rear lights can only be switched on when the road safety switch is in the field (off-road) position.

CAUTION: Work lights must be switched on only when operating in the field.

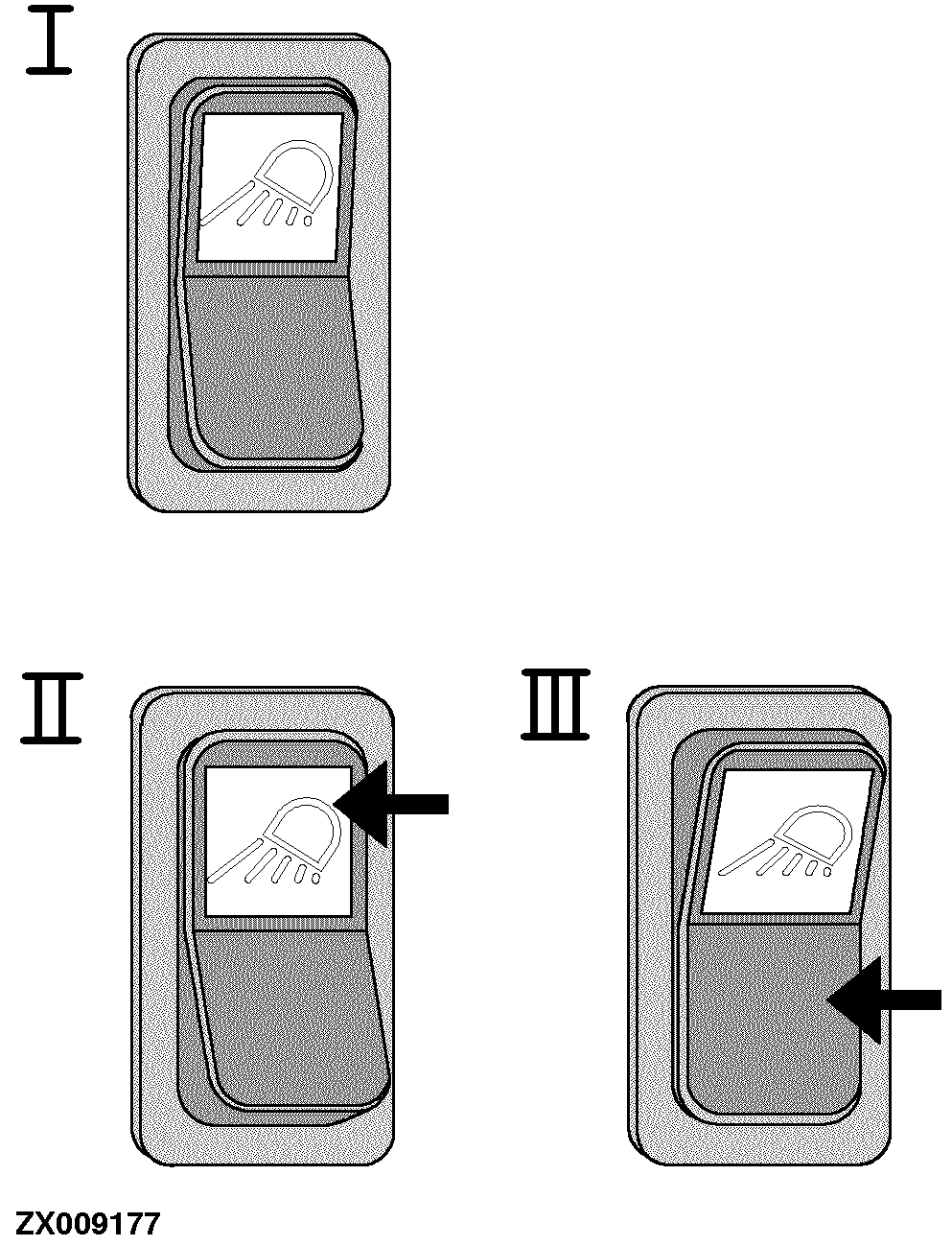

I-Work lights on operator's platform and rear lights on
II-Work lights on mirror arms on
III-Off

AG,CO03622,1487 -19-05NOV02-1/1
