Before Starting the Engine

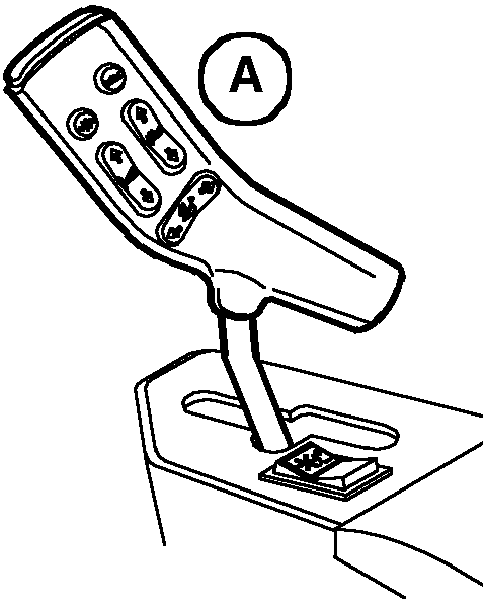

The forward/reverse lever must be in neutral (A).

Battery main switch must be on (B).

Other control positions:

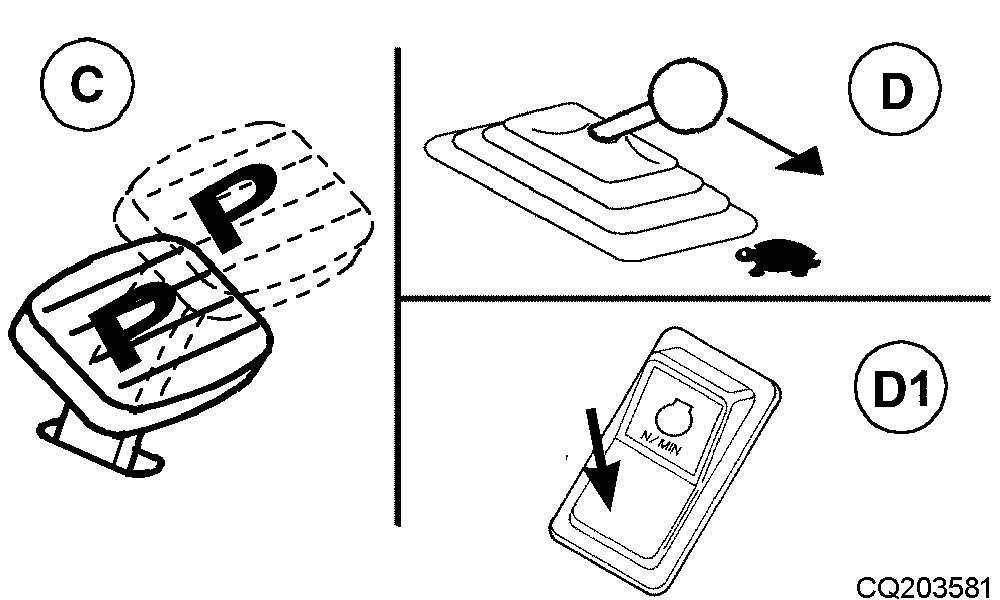

· Apply parking brake (C).
· Pull throttle lever all the way back (D) (1450 and 1550).
· Place throttle rocker switch in position (D1) (1450 CWS and 1550 CWS).

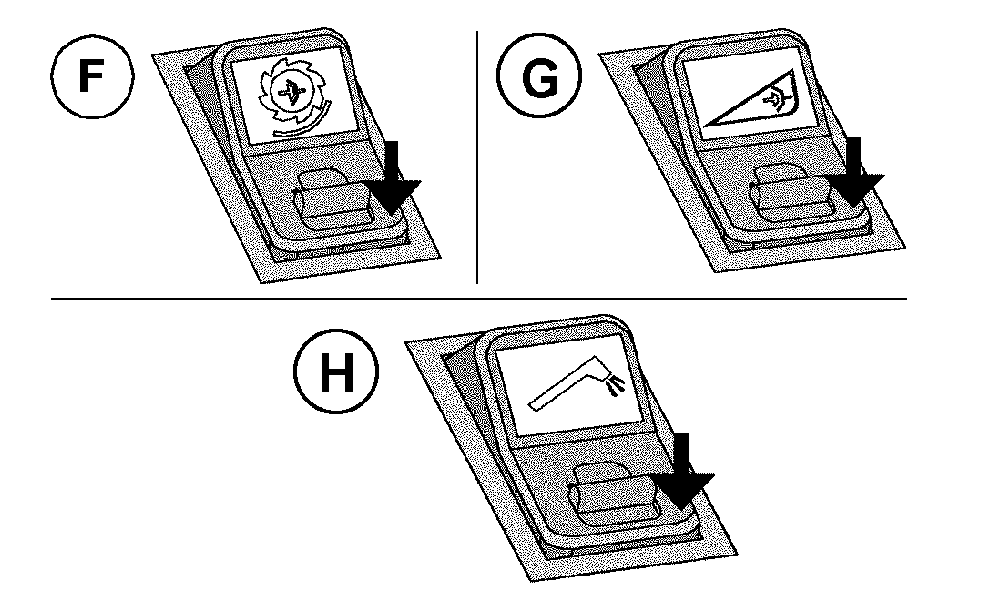

· Turn off separator (F), cutting platform (G) and unloading auger drive (H) switches.

CQ216280
CQ216290
CQ203581
CQ209443

AG,CO03622,1512 -19-19NOV02-1/1
