Stopping the Engine

IMPORTANT: Before finally shutting off the engine, run at slow idle for 1-2 minutes to allow engine to cool.

Put forward/reverse lever in neutral.

Disengage all drives.

Apply parking brake.

Lower header to ground.

Set throttle lever to idle (1450 e 1550).

Set throttle switch in intermediate position (1450 CWS and 1550 CWS).

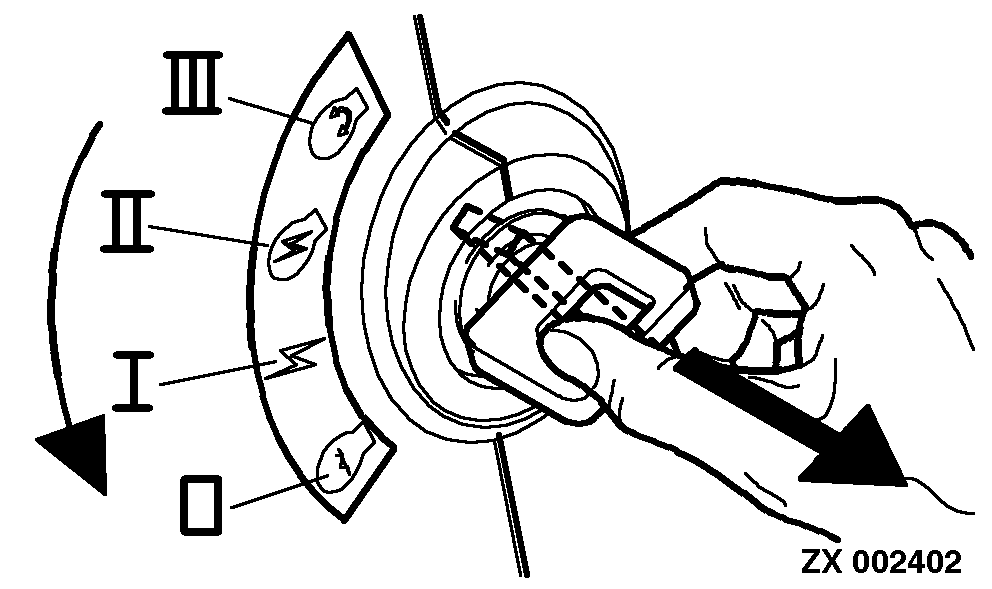

Turn starter switch to Position "0".

CAUTION: Always remove key before leaving operator's cab.

AG,CO03622,1521 -19-19NOV02-1/1
