Operating the Foot Brakes

During road travel

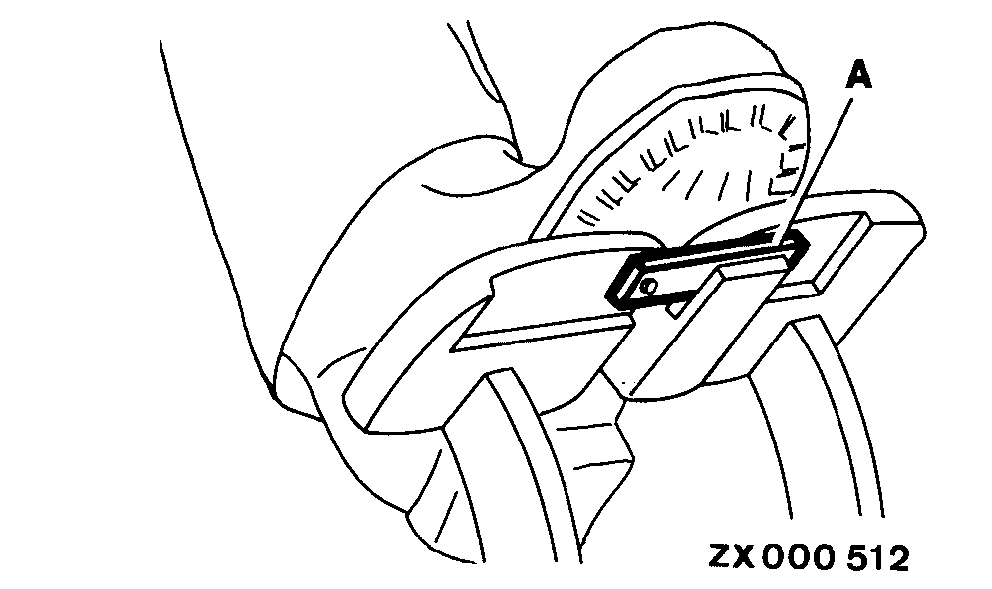

causym CAUTION: For safety reasons, always couple brake pedals by means of pedal coupler (A) when driving on public roads. This ensures the brakes are actuated together.

During field travel

causym CAUTION: When stopping the combine harvester, always depress both pedals simultaneously.

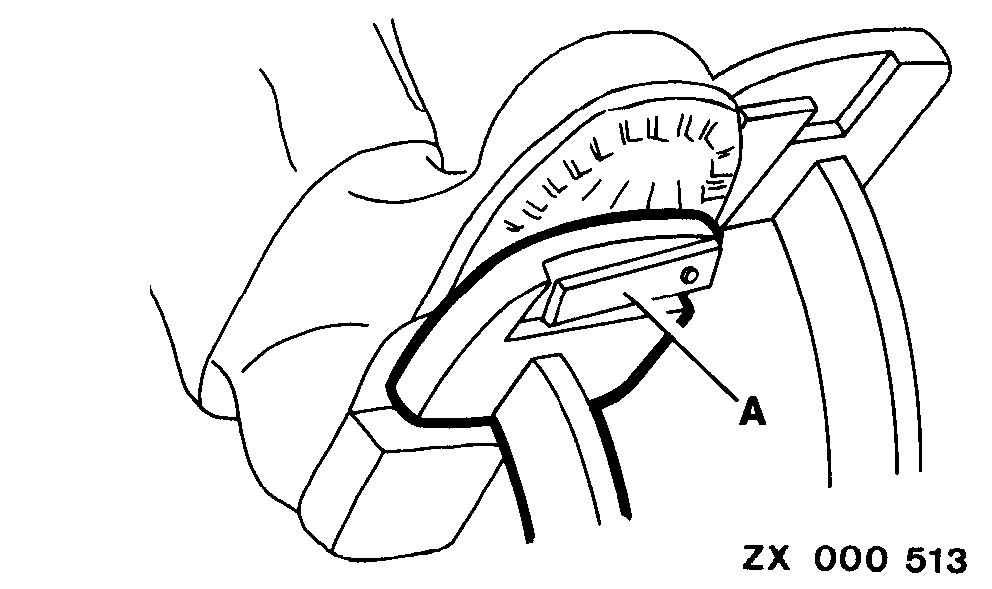

When negotiating sharp turns, use individual brakes to assist steering. For this purpose, disengage pedal coupler (A).

ZX000512
ZX000513

AG,CO03622,1526 -19-04AUG99-1/1
