Avoid Overheating of Hydrostatic System

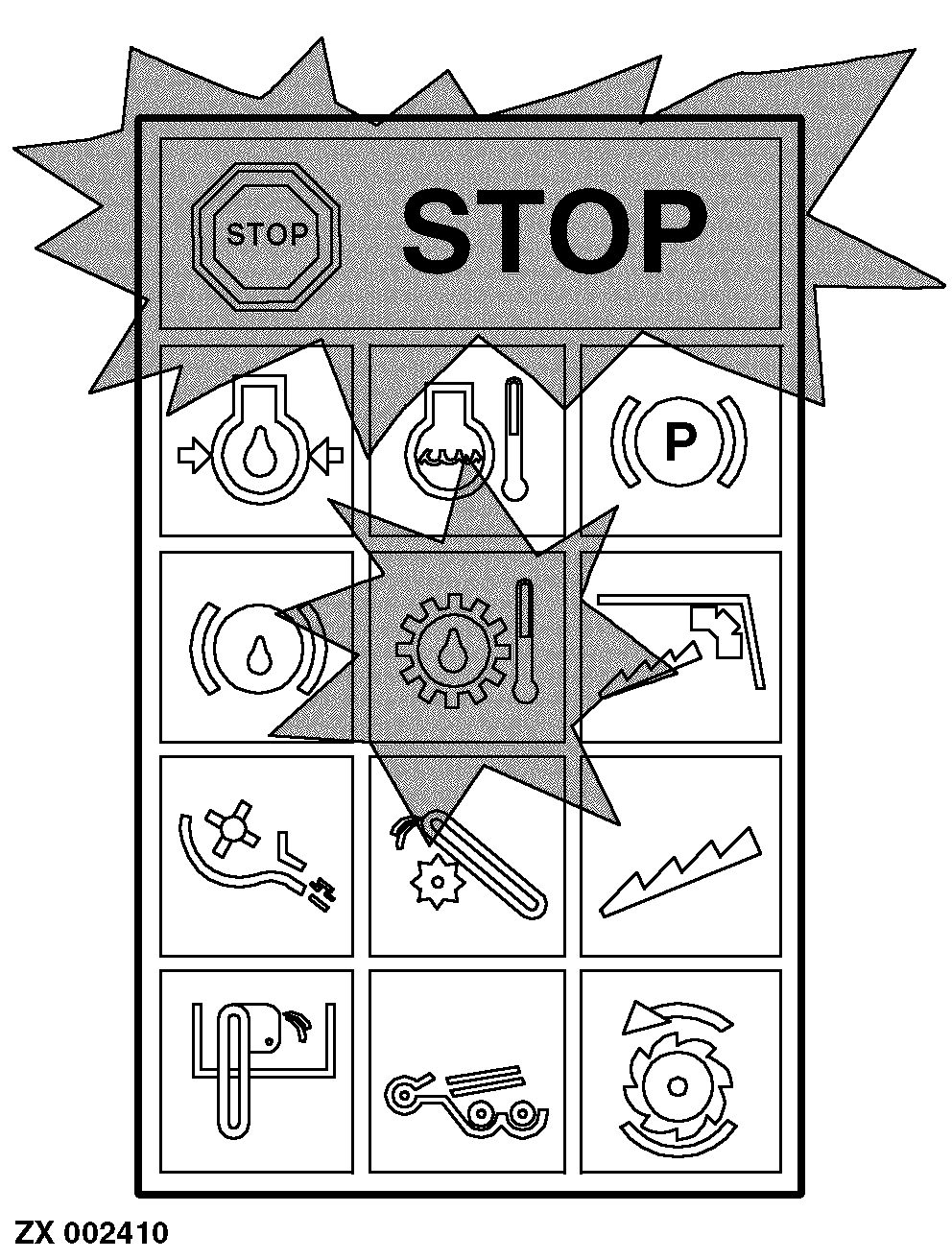

When hydrostatic oil temperature is too high, indicator light (A) and warning light (STOP) will glow, and at the same time the buzzer will be activated (intermittent warning signal).

In this case select a lower speed range, giving more efficient hydrostatic system operation and reducing the oil temperature.

IMPORTANT: If the ground speed drive stalls, never wait more than 5 seconds before shifting the control lever back to "Neutral". Then select a lower speed range.

NOTE: Drive wheel torque depends on oil pressure in hydrostatic system. If the pressure requirement exceeds the pressure in the hydrostatic system, a relief valve will open and the combine harvester will stop. As soon as the pressure requirement drops (i.e. a lower speed range is selected), the combine harvester will travel normally again.
