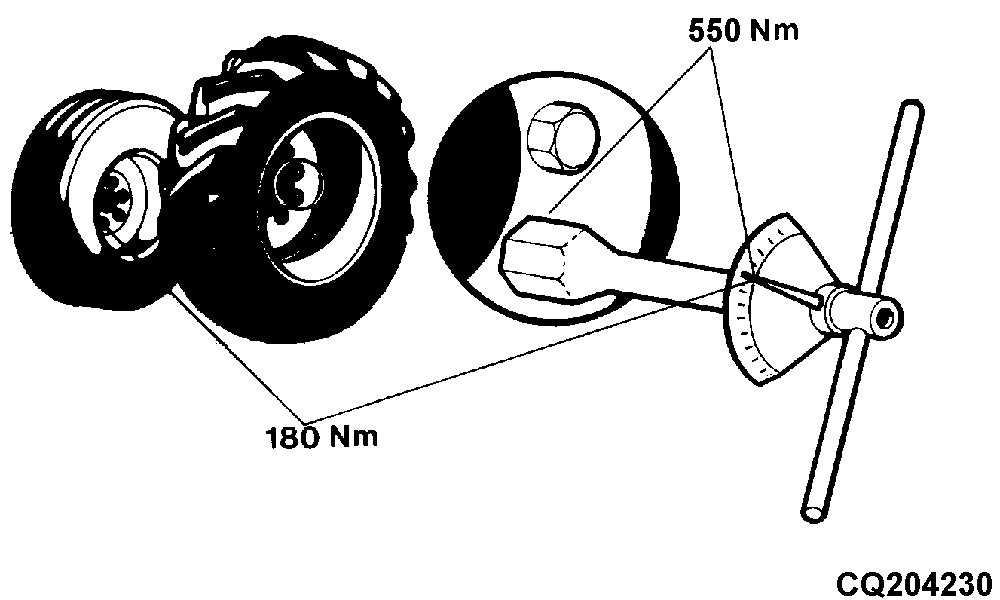

Tightening Wheel Nuts

Tighten the nuts after the first hours of operation and after 25 hours. Then tighten at the start of each harvesting season.

Front Wheels: 550 Nm (55 kgm; 400 ft-lb).

Rear Wheels: 180 Nm (18 kgm; 3,962.40 cm-lb).

AG,CO03622,1540 -19-15NOV02-1/1
