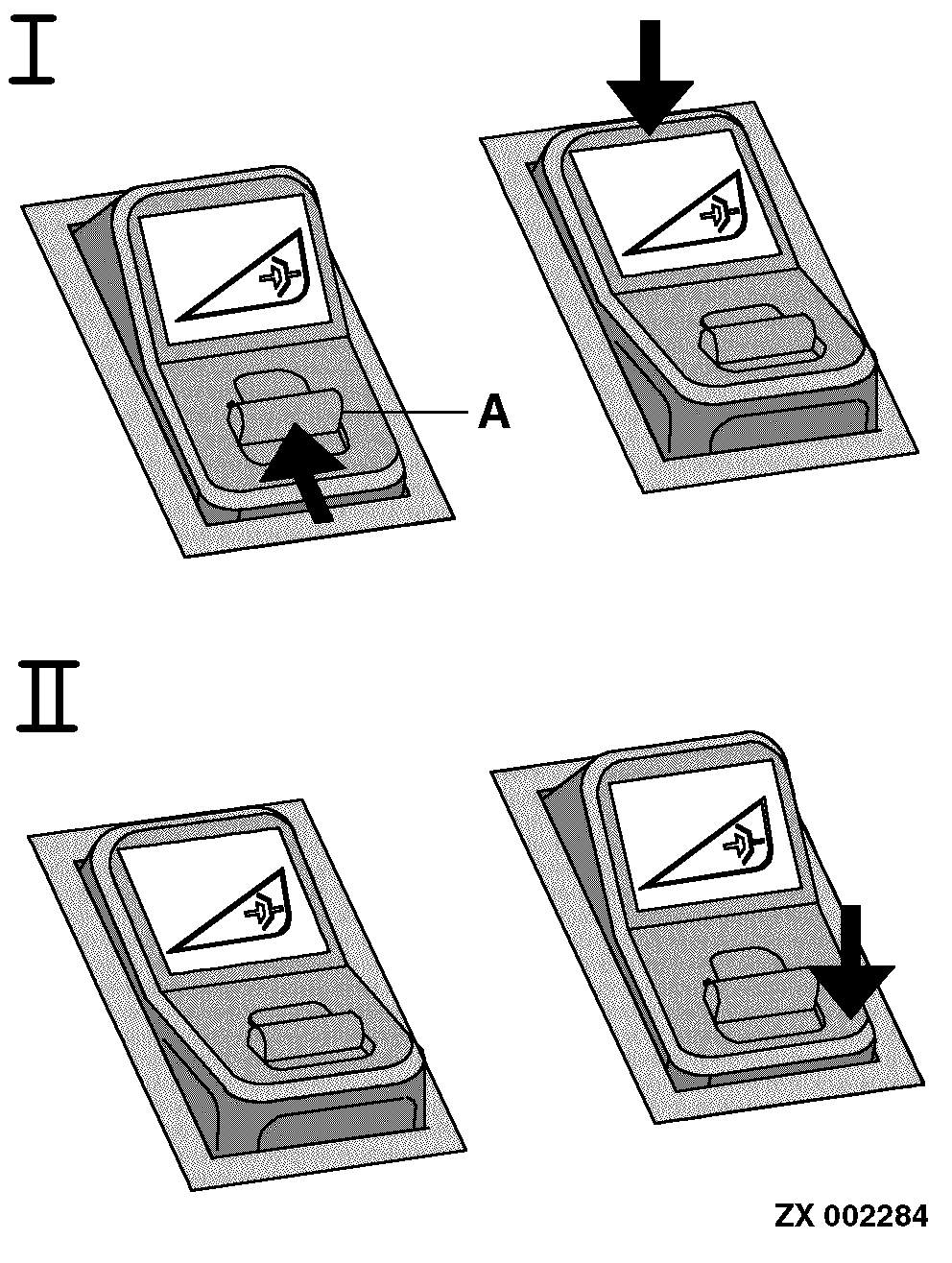

Header Drive Tumbler Switch (With Operating Lock)NOTE: With this switch in the on position, the engine start system will be blocked. Requirements: · Engine running (low speed) · Road safety switch in field position. · Separator engaged Engaging Header Drive (I): Push up operating lock (A) and depress top part of switch (symbol). Disengaging Header Drive (II): Depress lower part of switch. NOTE: For emergency stop, use the quick "STOP" switch on the multi-function lever. In this case the header disengages with the header drive switch in ON position, to reactivate this function is necessary turn OFF and ON again the header drive switch. |
|
AG,CO03622,1546 -19-05NOV02-1/1 |
