Unloading Auger Swing Tumbler Switch (With Center Position)

Requirements:

· Engine running

· Road safety switch in field position.

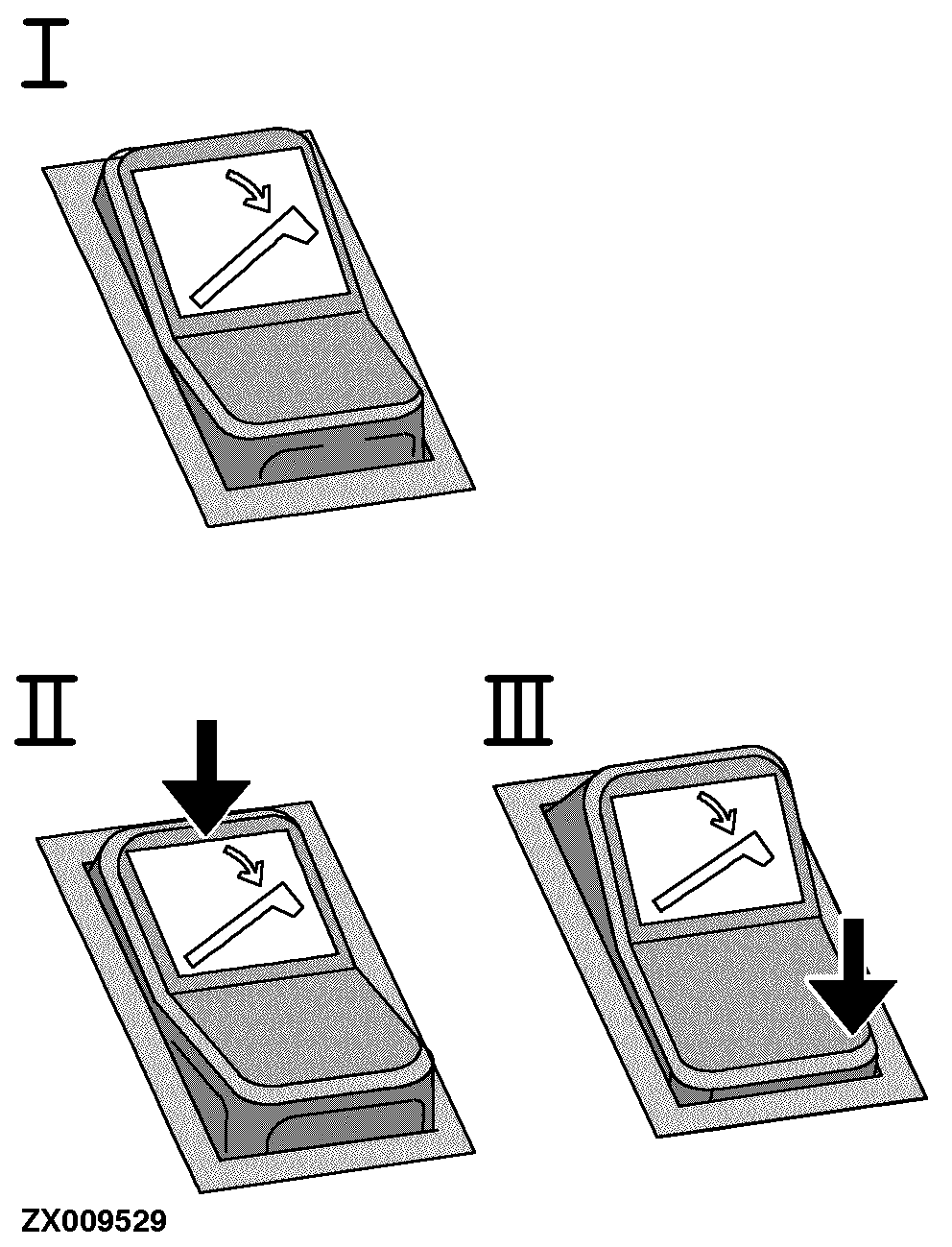

I - Swing drive shut off

II - Swing out unloading auger

III - Swing in unloading auger

NOTE: The swing drive is shut off automatically as soon as auger end positions are reached (after approx. 20 seconds). Auger motion can be stopped in any position by moving switch back to center position.

AG,CO03622,1548 -19-05NOV02-1/1
