Reel Speed Control Switch (DIAL-A-SPEED™)

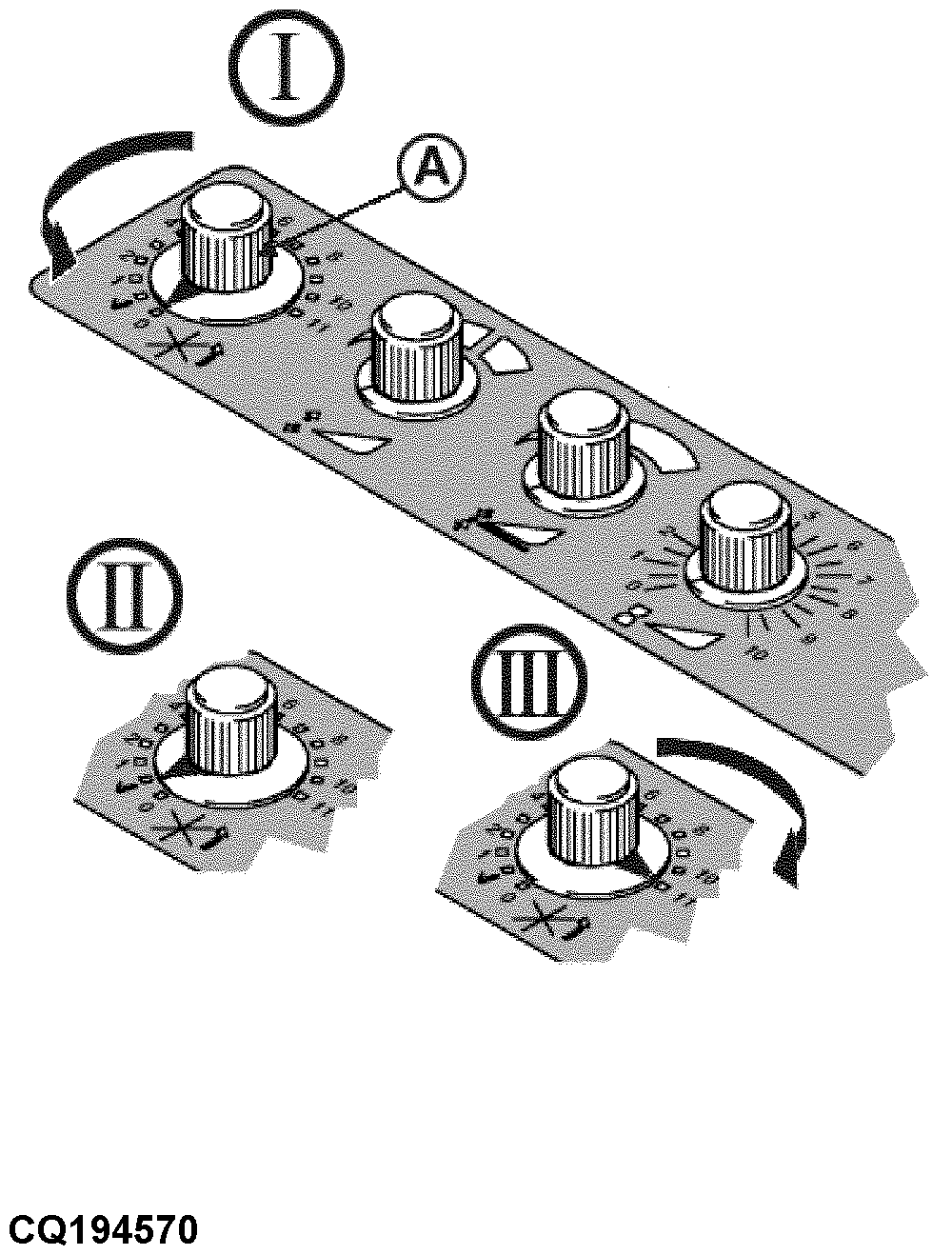

Reel speed-to-ground speed ratio may be preselected. Turning switch (A) clockwise changes ratio from 0.8-2.2 (shown on switch as 1-11). Turning switch all the way counterclockwise will de-activate reel speed control system.

I-Reel speed control off
II-Switch position for diagnosis/manual reel speed (refer to ""Service-Electrical System")
III-Reel speed is 2.2 times faster than ground speed

DIAL-A-SPEED is a trademark of Deere & Company

AG,CO03622,1550 -19-07OCT02-1/2

NOTE: Reel speed control system will only operate within a ground speed range from 1.2 km/h (0.75 mph) to approx. 10 km/h (6.25 mph).

Operation:

During operation, reel speed may be adapted to harvesting conditions.

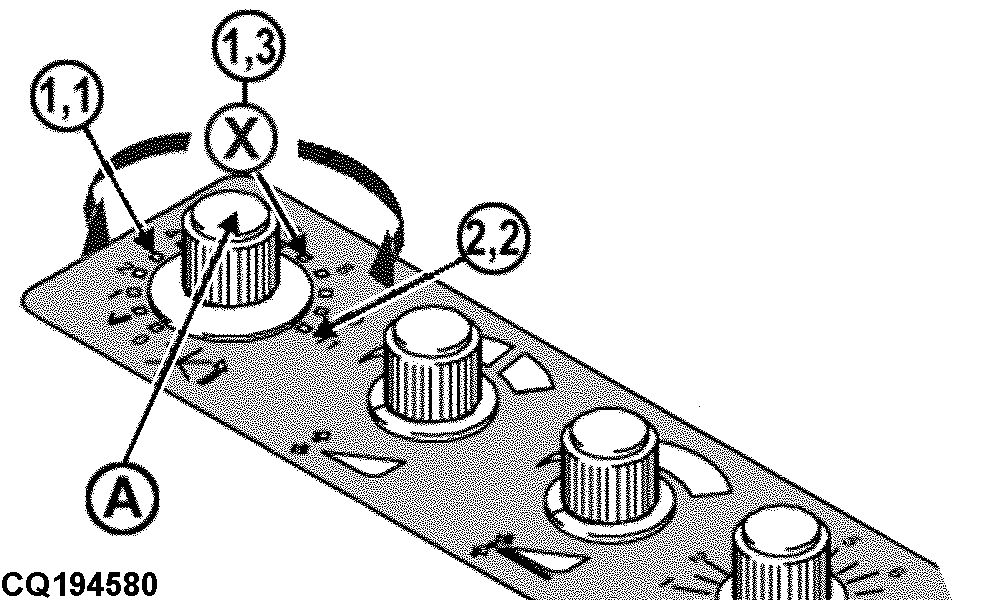

When working in down and tangled grain crops and a reel speed faster than ground speed is desired, move switch (A) to area (X) (a ratio between 1.1 and 2.2; shown on switch as 3-11).

NOTE: With reel speed control system activated, the reel will continue to rotate at slowest speed when ground speed drops below operating range.

AG,CO03622,1550 -19-07OCT02-2/2
