Locking Header Lift Cylinders

CAUTION: Always insert the safety rail before working on raised header.

IMPORTANT: Insert safety rail only when header is fully raised.

Before working on raised header, insert safety rail (A) above the lift cylinders.

Before starting field operation, remove safety rail (A) and secure it with chain (B).

A-Safety Rail
B-Drive Chain

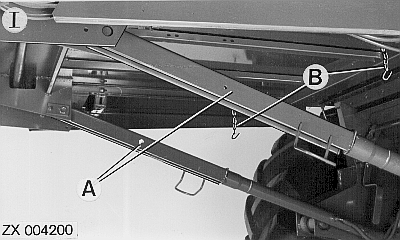

I-Safety Rail Inserted

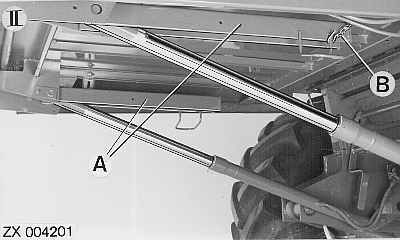

II-Safety Rail Removed

AG,CO03622,1623 -19-15NOV02-1/1
