Installing the Chain and Shield (PC 300R)

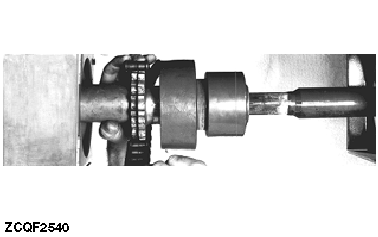

Place the chain on the two sprockets on both sides of the header.

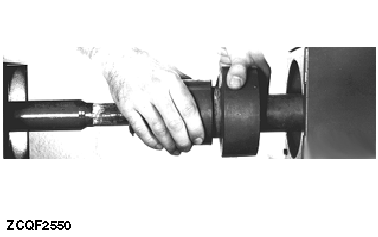

NOTE: Do not tie the chain. The protective shield will keep the chain on the sprockets. Push the protective shield on both sides of the combine.

IMPORTANT: Once installed the cutting platform, check its levelling.

ZCQF2540
ZCQF2550

AG,CO03622,1632 -19-11OCT02-1/1
