Connecting the Transmission

(Serie 300F and 600 Cutting Platforms, both sides)

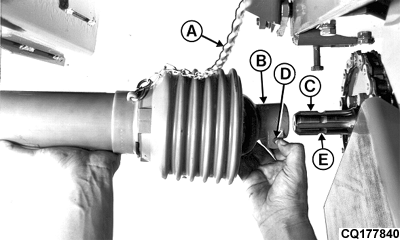

By means of chain (A) remove the platform drive shaft from its transport position.

NOTE: To align it may be necessary make (B) turn.

Press pin (D) while push the shaft coupler (B) in shaft (C) until you feel the pin stops on top (E).

IMPORTANT: Once installed the cutting platform, check its levelling.
