Adjusting Floating Drum Height (Only for Feeder House 300 Series)

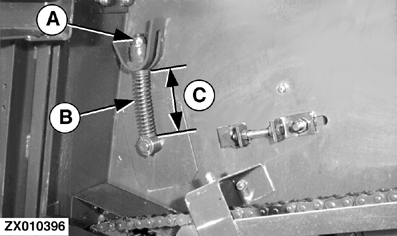

Adjust the height of spring (B) with nut (A) on both sides of the feeder house.

For Corn:

- Spring length (C) should be between 107 - 113 mm.

For Other Crops:

- Spring length (C) should be between 137 - 143 mm.

A-Adjusting Nuts
B-Spring
C-Spring length

AG,CO03622,1635 -19-14AUG02-1/1
