Rotary Fan Switch

IMPORTANT: Always switch on fan before heating or air conditioning system is set to work.

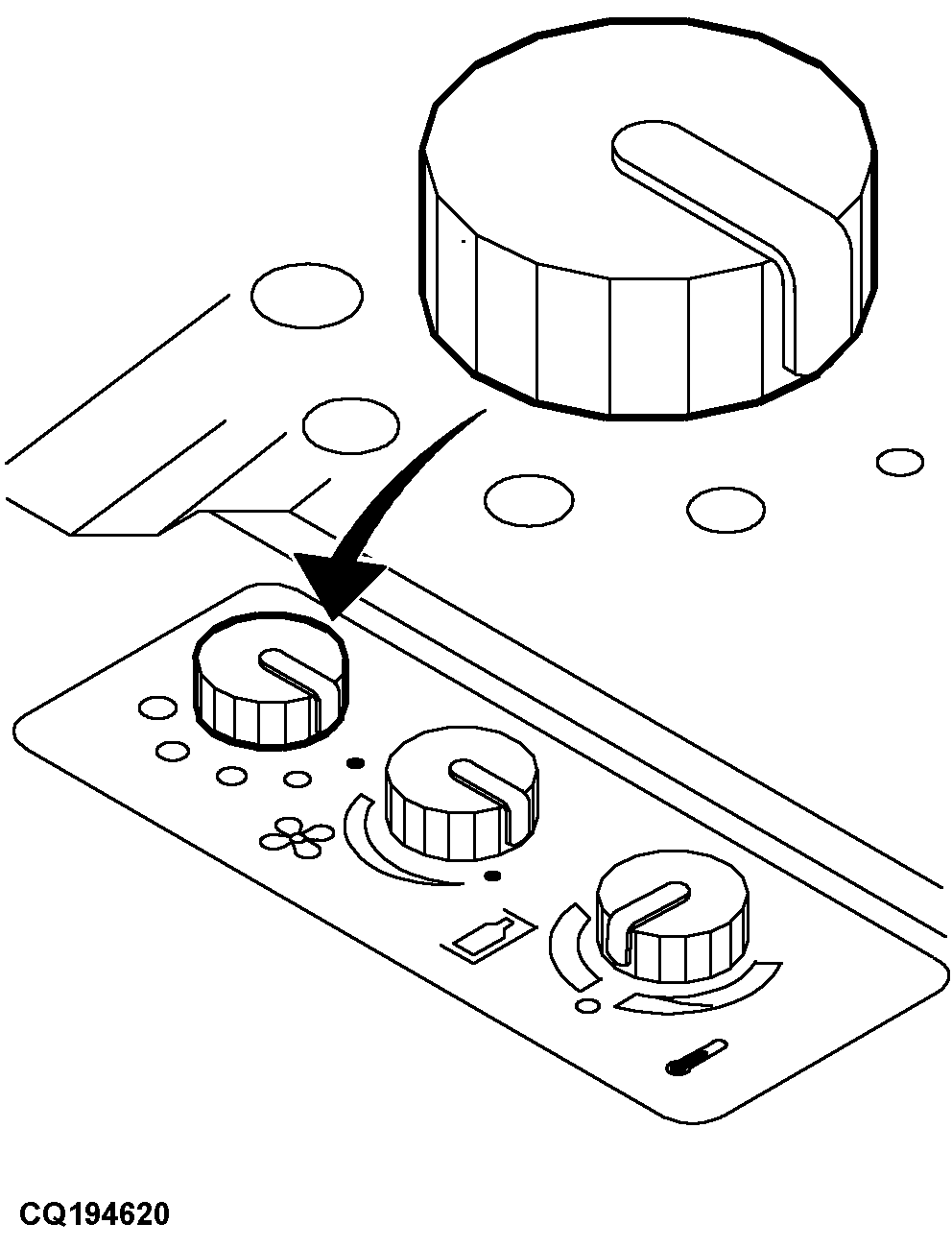

A four-speed rotary switch controls the fan which slightly pressurizes the cab. To switch on fan (only possible with ignition turned on), turn switch clockwise.

Position 0 - Fan off

Fan speed increases if switch is turned further to the right (clockwise).

CQ194620

AG,CO03622,1642 -19-13MAR02-1/1
