Cylinder Speed Switch

Cylinder speed adjustment is only possible with engine running, road safety switch in field position and separator engaged.

IMPORTANT: After changing cylinder speed, alarm speed must also be readjusted (refer to Section "Warning Devices and Monitors").

NOTE: The current cylinder speed can be displayed on the infotrak monitor.

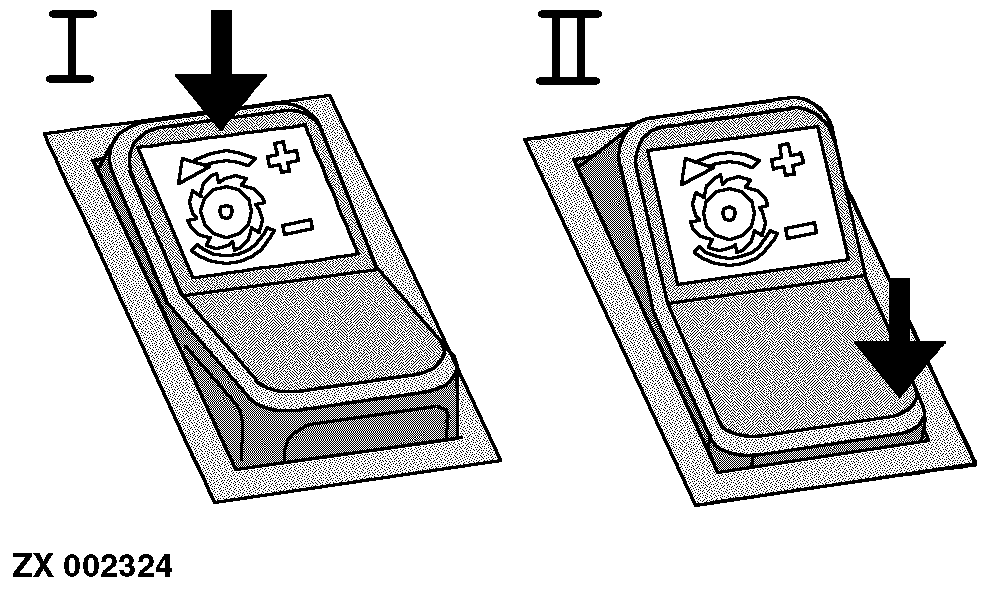

I-Increase cylinder speed
II-Reduce cylinder speed
