Fan Speed Switch

Fan speed adjustment is only possible with engine running, road safety switch in field position and separator engaged.

IMPORTANT: After changing fan speed, alarm speed must also be readjusted (refer to Section "Warning Devices and Monitors").

NOTE: The current fan speed can be displayed on the infotrak monitor.

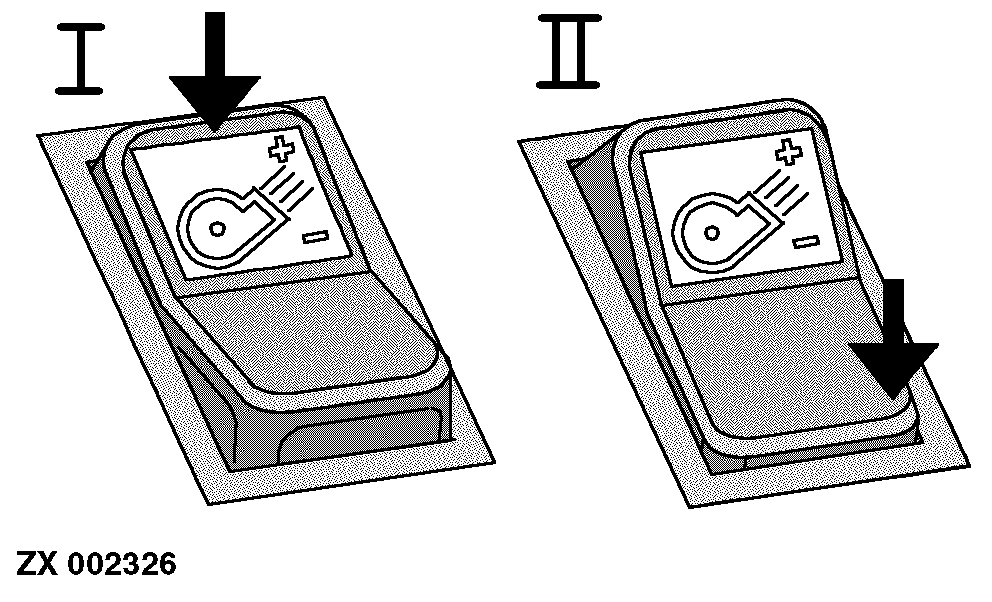

I-Increase fan speed
II-Reduce fan speed

AG,CO03622,1648 -19-17MAY02-1/1
