Unloading Auger Drive Switch

NOTE: With this switch in the on position, the engine start system will be blocked.

Requirements:

· Engine running

· Road safety switch in field position.

Engaging Unloading Auger Drive

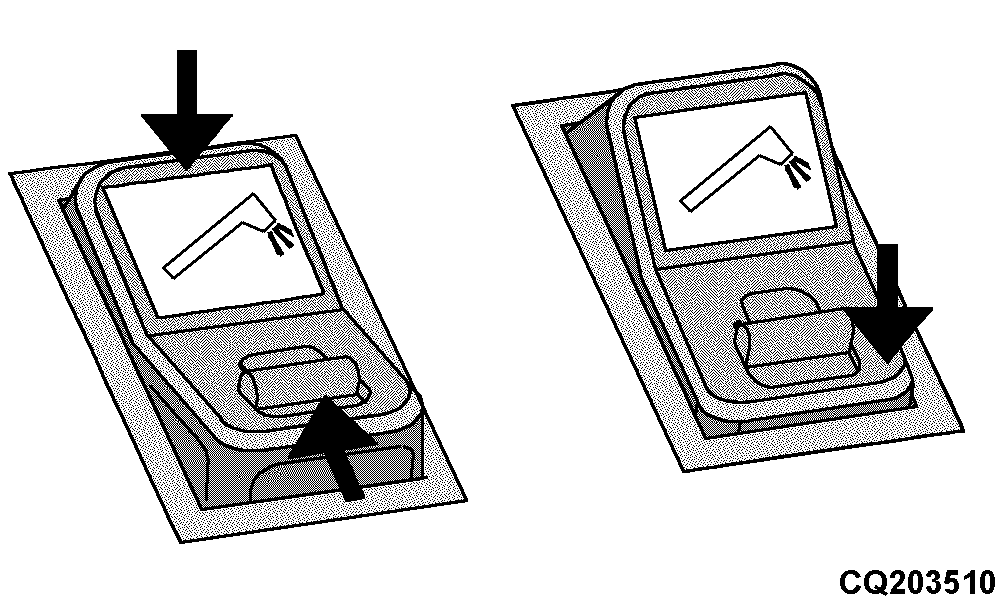

To engage the unloading auger drive, press the switch (end with figure). The indicator light comes on as soon as the drive is engaged.

NOTE: The system engages the unloading auger drive in any position, inclusively when it is totally swung in.

Disengaging Unloading Auger Drive

Depress lower part of switch.

NOTE: For emergency stop, use the quick "STOP" switch on the multi-function lever. In this case the unloading auger disengages with the unloading auger drive switch in ON position, to reactivate this function is necessary turn OFF and ON again the unloading auger drive switch.
