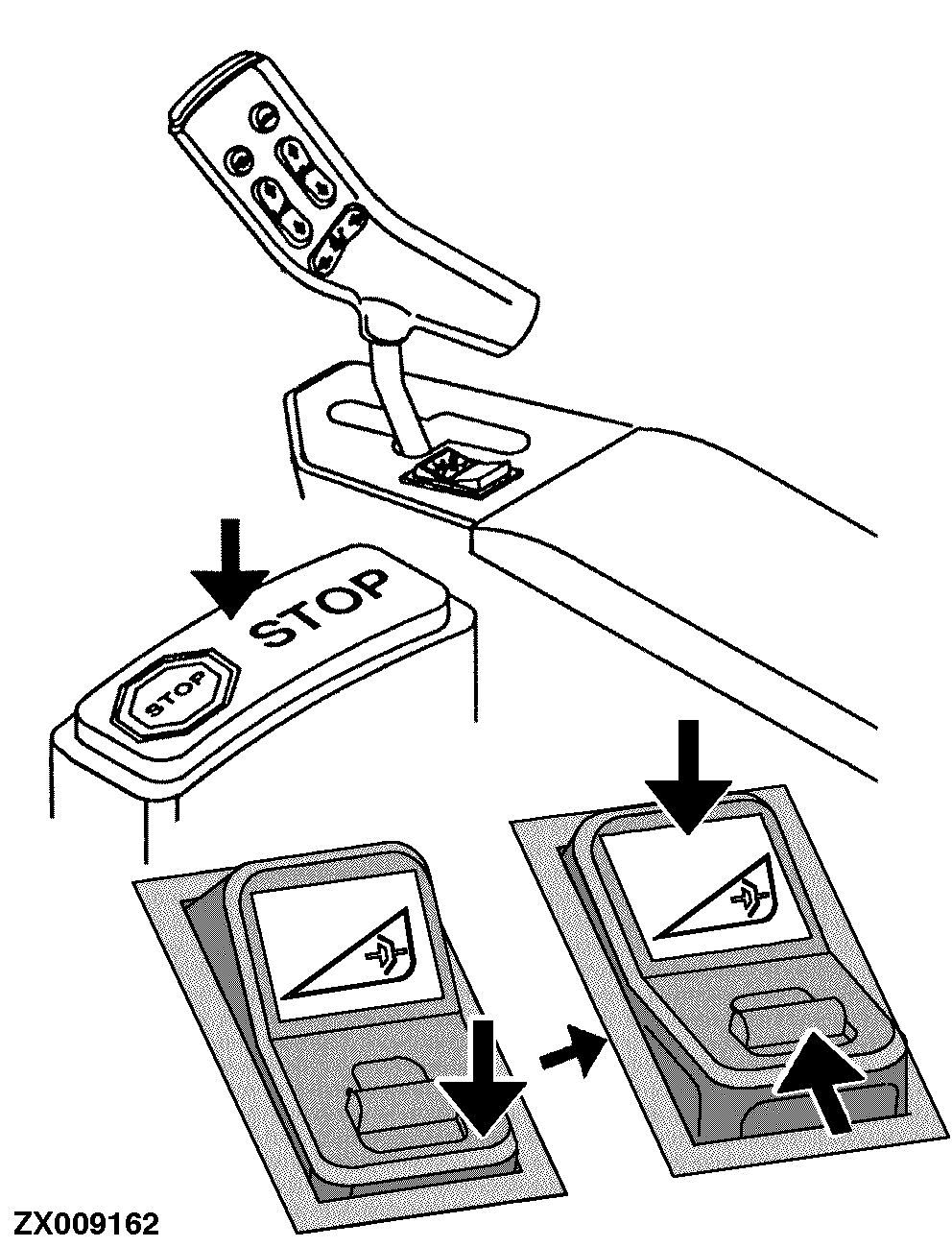

Quick "STOP" Switch

IMPORTANT: Header, reverser and unloading auger can be disengaged instantaneously with this switch in the event of malfunctions.

The reel will be also disengaged when the quick stop switch is activated.

For reengaging any of the functions, turn the correspondent switch OFF and ON. Before doing so, make sure that the malfunction has been corrected.

AG,CO03622,1651 -19-19NOV02-1/1
