Moving Straw Distributor Into Operating Position

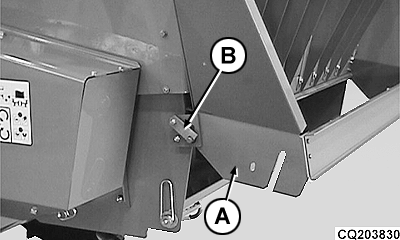

  • Release latch (B) on each side to unlock straw distributor (A) from its transport position.

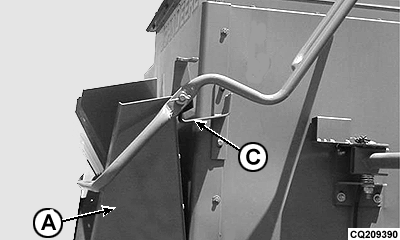

  • Lift straw distributor (A) out of brackets (C) and move it down into operating position.

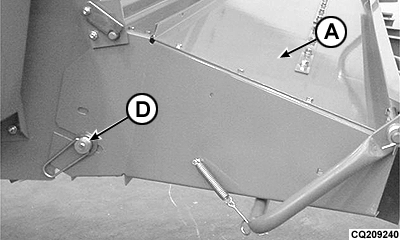

  • Attach straw distributor (A) by means of attaching screws (D), then tighten securely on both sides.


A-Straw Distributor
B-Latch
C-Bracket
D-Attaching Screw

CQ203830
CQ209390
CQ209240

AG,CO03622,2025 -19-14MAR02-1/1
