Adjusting Straw Deflectors

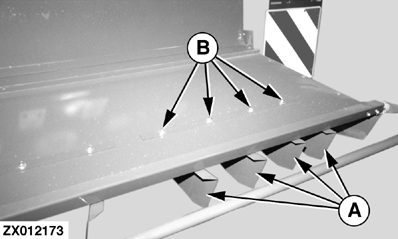

Each straw deflector (A) can be adjusted individually. First slacken off self-locking nut (B), then adjust straw deflectors (A) as required to regulate width of chopped material.

NOTE: The closer the top of deflectors (A) are to the middle, and the further apart they are at the bottom, the wider the spread of chopped material.
