Brake Fluid for Brake System

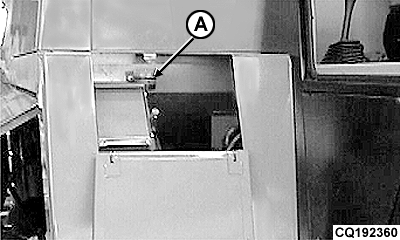

The brake fluid reservoir (A) is located at the right front next to the tailings elevator.

IMPORTANT: Use only brake fluid that meets SAE Standard J 1703 (DOT 4).

· Complete system: 1.0 L (0.26 U.S. gal)

· Reservoir: 0.5 L (0.13 U.S. gal)

AG,CO03622,2067 -19-15NOV02-1/1
